PCI-1602U

Universal PCI, 100 kS/s, 32-ch, 16-bit AI Multifunction Board (8 K word FIFO)

Features

Universal PCI (3.3 V/5 V) Interface
Supports Card ID (SMD Switch)
2-channel, 12-bit Analog Output
16-channel 5 V/TTL Digital Output
16-channel 5 V/TTL Digital Input
- Pull-high and Pull-low Resistors for DI Channels
32 Single-ended/16 Differential Analog Input Channels
- 12-bit, 100 kS/s AD Converter
- Built-in MagicScan Controller
- Internal Trigger: Software-trigger, Pacer-trigger
- External Trigger: Post-trigger, Pre-trigger, Middle-trigger
High-speed data transfer rate up to 2.1 M words/sec

Introduction

The PCI-1602U is a high performance multifunction card providing high-speed analog I/O and digital I/O functions. The PCI-1602U has a universal PCI interface supporting both 3.3 V and 5 V PCI bus, and it features a continuous, 100 kS/s 16-bit resolution A/D converter, 8 K-sample hardware FIFO, a MagicScan controller (for multi-channel scan), 2-ch 16-bit D/A converter, 16-ch DI and 16-ch DO. The PCI-1602U provides either 32-ch single-ended or 16-ch differential AIs which are jumper selectable, and a programmable high speed PGA is equipped for gain controls (1, 2, 4 and 8).

The PCI-1602U has a Card ID switch for users to recognize the board by the ID via software when using two or more PCI-1602U cards in one computer. The pull-high/pull-low jumpers of the card allow user to predefine the DI status instead of floating when the DI channels are unconnected or broken.

The cards support various OS versions, such as Linux, DOS, Windows. DLL and Active X control together with various language sample program based on Turbo C++, Borland C++, Microsoft C++, Visual C++, Borland Delphi, Borland C++ Builder, Visual Basic, C#.NET, Visual Basic.NET and LabVIEW are provided in order to help users to quickly and easily develop their own applications.

ICP DAS PC-Based Multifunction Board Selection Guide
Model Name	Bus	D/A Channel	A/D Channel	A/D Sampling Rate	FIFO Size	Software Trigger (Polling)	Channel Scan (Pacer)	External Triger	Interrupt function
PEX-1202L	PCI Express	12-bit, 2-ch	12-bit, 32 S.E/16 Diff	110 kS./s	1 k	V	V	V	-
PCI-1202LU	Universal PCI	12-bit, 2-ch	12-bit, 32 S.E/16 Diff	110 kS./s	1 k	V	V	V	-
PEX-1202H	PCI Express	12-bit, 2-ch	12-bit, 32 S.E/16 Diff	44 kS./s	1 k	V	V	V	-
PEX-1202HU	Universal PCI	12-bit, 2-ch	12-bit, 32 S.E/16 Diff	44 kS./s	1 k	V	V	V	-
PCI-1602U	Universal PCI	12-bit, 2-ch	16-bit, 32 S.E/16 Diff	100 kS./s	8 k	V	V	V	-
PCI-1602FU	Universal PCI	12-bit, 2-ch	16-bit, 32 S.E/16 Diff	200 kS./s	8 k	V	V	V	-
PCI-1800LU	Universal PCI	12-bit, 2-ch	12-bit, 16 S.E/8 Diff	330 kS./s	1 k	V	V	V	-
PCI-1800HU	Universal PCI	12-bit, 2-ch	12-bit, 16 S.E/8 Diff	44 kS./s	1 k	V	V	V	-
PCI-1802LU	Universal PCI	12-bit, 2-ch	12-bit, 32 S.E/16 Diff	330 kS./s	8 k	V	V	V	-
PCI-1802HU	Universal PCI	12-bit, 2-ch	12-bit, 32 S.E/16 Diff	44 kS./s	8 k	V	V	V	-
PCI-822LU	Universal PCI	16-bit, 2-ch	12-bit, 32 S.E/16 Diff	250 kS./s	8 k	V	V	V	V	Cost-effective Programmable DIO
PCI-826LU	Universal PCI	16-bit, 2-ch	16-bit, 32 S.E/16 Diff	250 kS./s	8 k	V	V	V	V	Cost-effective Programmable DIO

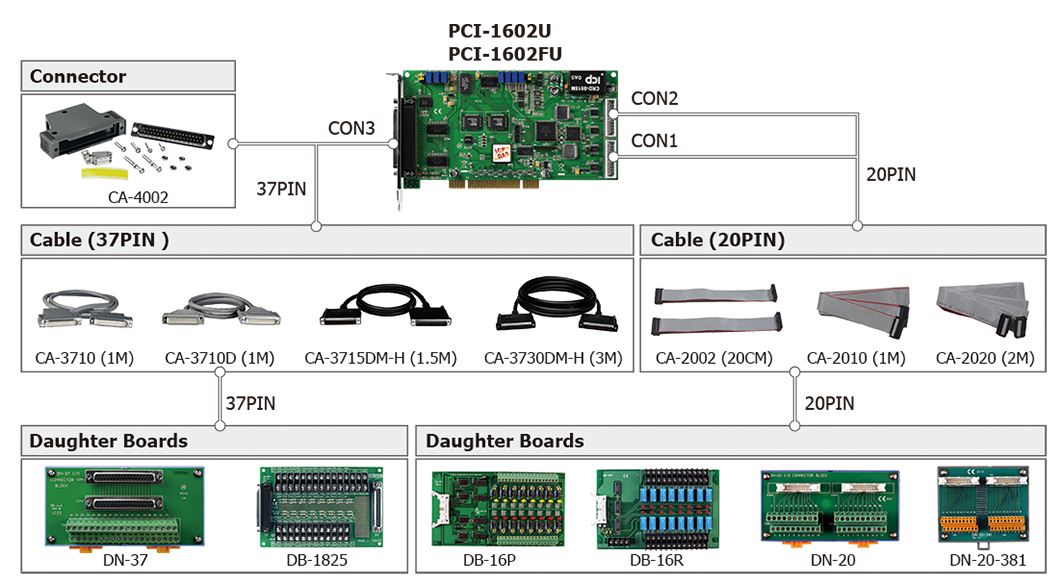

Accessories

Applications

High speed data acquisition system.
Process monitor and control.
Vibration analysis.
Digital pattern generator from digital I/O port.

Ordering Information

PRODUCT SERIES	DESCRIPTION	QNT.	INQUIRY
PRODUCT SERIES PCI-1602U CR	DESCRIPTIONUniversal PCI, 100 kS/s, 32-ch, 16-bit AI Multifunction Board (8 K word FIFO) (RoHS) Includes one CA-4002 D-Sub connector

This combination include other products.

Similar Products

Available soon

Will be phased out

Phased out

Hardware
Card ID	Yes (4-bit)
Connector	Female DB37 x 1 Male 20-bit ribbon x 2

Analog Input
Channels	32 single-ended/16 differential
Range	Gain: 1, 2, 4, 8 Bipolar Range: ±10 V, ±5 V, ±2.5 V, ±1.25 V
Resolution	16-bit
Accuracy	0.01 % of FSR ±1 LSB @ 25 °C, ±10 V
Sampling Rate	100 kS/s. Max.
Input Impedance	10 MΩ/6 pF
Overvoltage Protection	Continuous ±35 Vp-p
Zero Drift	±4 ppm/°C of FSR
FIFO Size	8192 samples
Trigger Mode	Software, Internal programmable pacer, External (5 V/TTL)
Data Transfer	Polling

Analog Output
Channels	2
Range	Bipolar:±5 V, ±10 V
Resolution	12-bit
Accuracy	0.06% of FSR ±1 LSB @ 25 °C, ±10 V
Response Time	1.0 MHz (Typical)
Voltage Output Capability	±5 mA
Slew Rate	8.33 V/μs
Operation Mode	Static Update

Digital Input
Channels	16
Type	5 V/TTL
ON Voltage Level	2.0 V Min.
OFF Voltage Level	0.8 V Max.
Response Speed	1.0 MHz (Typical)
Trigger Mode	Static Update

Digital Output
Channels	16
Type	5 V/TTL
Operation Mode	Static Update
Load Voltage	Logic 0: 0.4 V Max. Logic 1: 2.4 V Min.
Load Current	Sink: 2.4 mA @ 0.8 V Source: 0.8 mA @ 2.0 V
Response Speed	1.0 MHz (Typical)
