PCI-1002LU

Universal PCI, 110 kS/s, 32-ch, 12-bit AI Multifunction Board

Features

Universal PCI (3.3 V/5 V) Interface
Supports Card ID (SMD Switch)
32 Single-ended/16 Differential Analog Input Channels
- 12-bit, 110 kS/s AD Converter
- Internal Pacer-trigger
16-channel 5 V/TTL Digital Output
16-channel 5 V/TTL Digital Input
- Pull-high and Pull-low Resistors for DI Channels

Introduction

The PCI-1002LU supports 3.3 V/5 V PCI bus. These cards are a family of A/D board and features low-gain 110 kS/s AI. It provides 12-bit 32 single-ended or 16 differential AIs, 16 DI and 16 DO channels.

The PCI-1002LU provide The pull-high/ pull-low resisters allow the DI status to be specified when the DI channels are unconnected; the DI status will remain in high or low status other than floating.

The cards support various OS versions, such as Linux, DOS, Windows. DLL and Active X control together with various language sample program based on Turbo C++, Borland C++, Microsoft C++, Visual C++, Borland Delphi, Borland C++ Builder, Visual Basic, C#.NET, Visual Basic.NET and LabVIEW are provided in order to help users to quickly and easily develop their own applications.

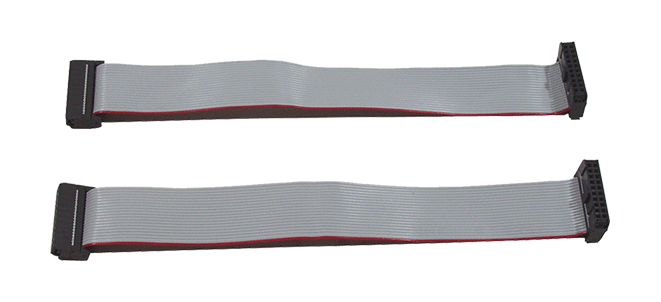

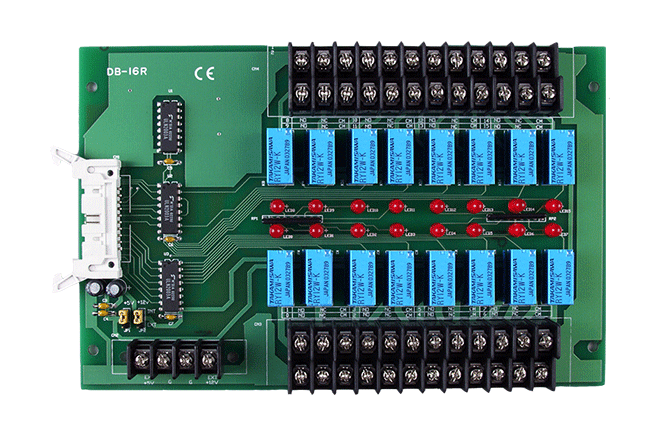

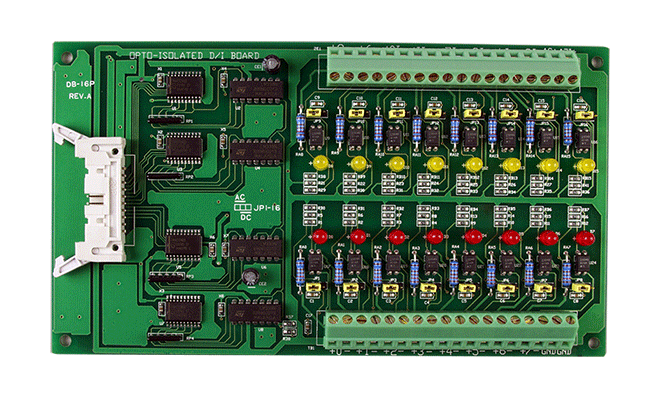

Accessories

Applications

Laboratory automation
Production test
Sensor interface

Ordering Information

PRODUCT SERIES	DESCRIPTION	QNT.	INQUIRY
PRODUCT SERIES PCI-1002LU CR	DESCRIPTIONUniversal PCI, 110 kS/s, 32-ch, 12-bit AI Multifunction Board (RoHS) Includes one CA-4002 D-Sub connector

This combination include other products.

Similar Products

Available soon

Will be phased out

Phased out

Hardware
Connector	Female DB37 x 1 20-pin box header x 2

Analog Input
Channels	32 single-ended/16 differential
Range	Gain: 1, 2, 4, 8 Bipolar Range: ±10 V, ±5 V, ±2.5 V, ±1.25 V
Resolution	12-bit
Accuracy	0.01% of FSR ±1 LSB @ 25 °C, ±10 V
Sampling Rate	110 kS/s. Max.
Input Impedance	10 MΩ/6 Pf
Overvoltage Protection	Continuous ±35 Vp-p
Zero Drift	±4 ppm/°C of FSR
Trigger Mode	Software, Internal programmable pacer, External (5 V/TTL)
Data Transfer	Polling, Interrupt

Digital Input
Channels	16
Type	5 V/TTL
ON Voltage Level	2.0 V Min.
OFF Voltage Level	0.8 V Max.
Response Speed	1.0 MHz (Typical)
Trigger Mode	Static Update

Digital Output
Channels	16
Type	5 V/TTL
Operation Mode	Static Update
Load Voltage	Logic 0: 0.4 V Max. Logic 1: 2.4 V Min.
Load Current	Sink: 2.4 mA Source: 0.8 mA
Response Speed	1.0 MHz (Typical)
