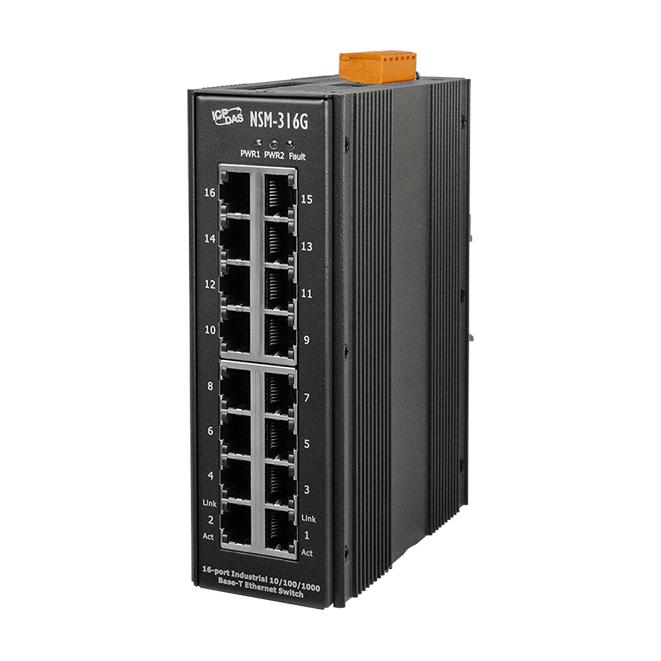

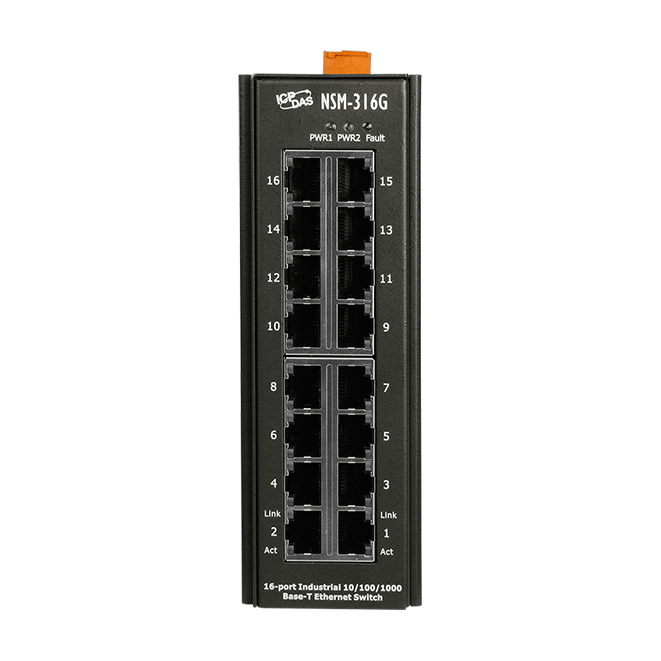

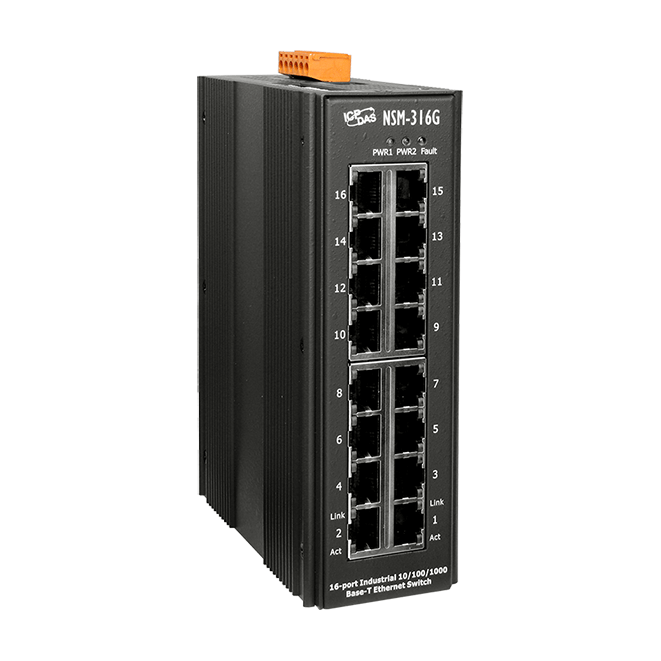

NSM-316G

16-port GBE Ethernet Unmanaged Switch
NSM-316G
NSM-316G
NSM-316G
NSM-316G
NSM-316G
NSM-316G
NSM-316G
NSM-316G
NSM-316G
NSM-316G

Features


• Full Gigabit Ethernet ports
• Nonblocking architecture, line rate for all packet sizes
• Fully integrated packet buffer
• DIP switch alarm setting for Port’s break
• Power loss alarm
• Supports 9216 Byte jumbo frames
• Supports Auto Negotiation and Auto MDI/MDI-X
• Supports Dual +12 ~ 48 VDC power input and 1 relay output
• Supports operating temperatures from – 40 ~ +75°C
• DIN-Rail Mounting, Wall Mounting (optional)
CE UKCA FCC RoHS WEEE

Introduction

The NSM-316G is 16-port unmanaged full Gigabit Ethernet switch, Energy Efficient Ethernet™ (EEE) , Port’s loss link Break Alarm, Power loss Alarm.




Applications

Ordering Information

PRODUCT SERIES DESCRIPTION QNT. INQUIRY
PRODUCT SERIES NSM-316G     CR DESCRIPTION16-port GBE Ethernet Unmanaged Switch (RoHS)
This combination include other products.

Similar Products

LED Indicators
Status PWR1, PWR2, FAULT, Link, Act
Ethernet
Ports 16 x RJ-45, 10/100/1000Base-T
Standards IEEE 802.3 for 10Base-T
IEEE 802.3u for 100Base-TX
IEEE 802.3ab for 1000Base-T
IEEE 802.3x for Flow Control
Energy Efficient Ethernet (EEE) as per 802.3az; this provides power savings during idle network activity
Processing Type Store & forward, wire speed switching
MAC Table 8 K
Frame Buffer Memory 512 Kbit
Flow Control IEEE802.3x flow control, back pressure flow control
Jumbo Frames 9216 Byte
Isolation 1500 Vrms 1 minute

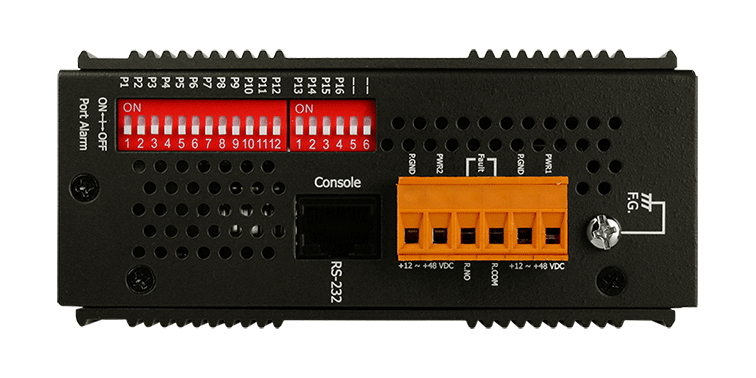

DIP Switch Ports loss link alarm mask
COM Ports
Ports 1 x RS-232 (console)
Power
Reverse Polarity Protection Yes
Input Range +12 ~ +48 VDC
Redundant Power Inputs Yes
Consumption 0.16A @ 48VDC Idle without loading; 0.2A @ 48VDC with full loading (0.12 W per ports)
0.31A @ 24VDC idle without loading; 0.39A @ 24VDC with full loading (0.12 W per ports)
Alarm Output Yes,Relay 1 A @ 30 VDC
Mechanical
Casing Metal
Dimensions (mm) DIN-rail mounting: 51 x 164 x 128 (W x L x H)
Wall mounting: 51 x 202 x 120 (W x L x H)

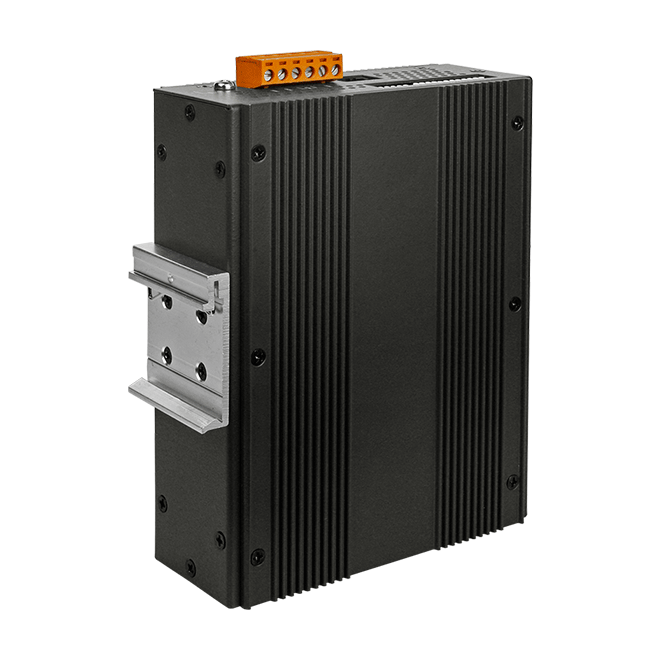

Installation DIN-rail mounting or wall mounting (optional)
Ingress Protection Rating IP30
Environment
Operating Temperature -40 °C ~ +75 °C
Storage Temperature -40 °C ~ +85 °C
Humidity 10% ~ 90% RH, non-condensing
