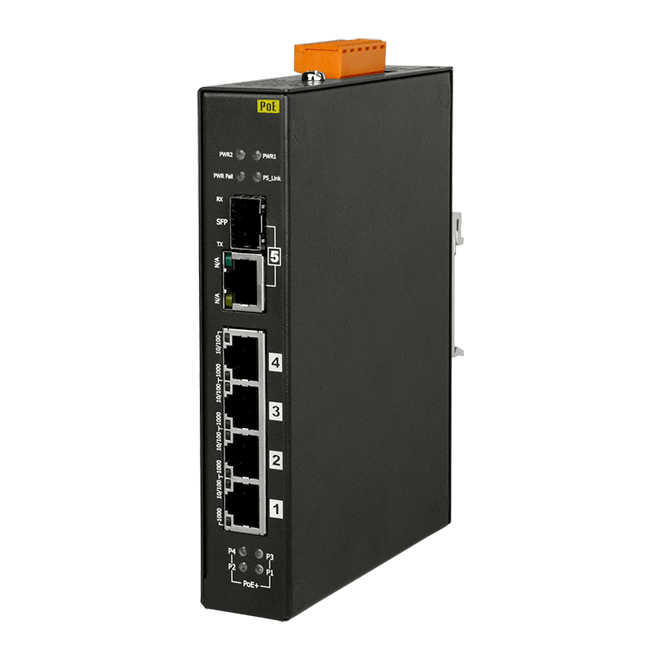

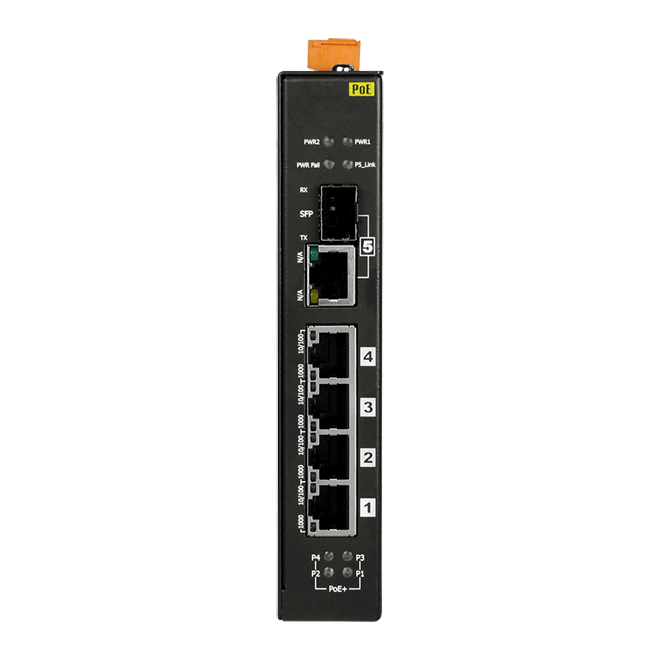

NSM-205GP

4G+1G Combo Port Gigabit Unmanaged Ethernet Switch with 4 IEEE 802.3af/at PoE+ ports
NSM-205GP
NSM-205GP
NSM-205GP
NSM-205GP
NSM-205GP
NSM-205GP
NSM-205GP
NSM-205GP

Features

• Full Gigabit Ethernet ports
• 4 PoE/PoE+ PSE capable ports, fully compliant to IEEE 802.3af/at
• Supports 10 KB jumbo frames
• Pluggable SFP transceiver port
• Supports Auto Negotiation and Auto MDI/MDI-X

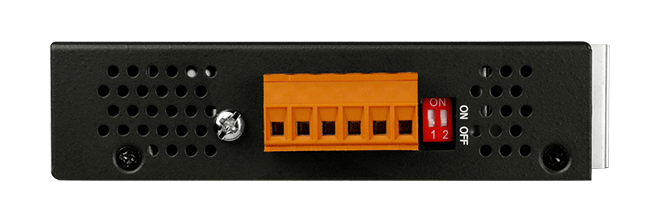

• Supports Dual +18 ~ 55 VDC power input and 1 relay output
• Supports operating temperatures from –40 ~ +75°C
• DIN-Rail Mounting, Wall Mounting (optional)
CE UKCA FCC RoHS WEEE

Introduction

The NSM-205GP is 5-port unmanaged full Gigabit Ethernet switch supporting Power-over-Ethernet on ports 1 to 4. The switch is classified as power source equipment (PSE), and when used in this way, the NSM-205GP switch enable centralization of the power supply, providing up to 30 watts. The NSM-205GP can be used to power IEEE 802.3af/at standard devices (PD). Voltage boost technology supports 24V industrial power sources ensuring that a full and proper PSE voltage is available across all PoE ports.

Applications

Ordering Information

PRODUCT SERIES DESCRIPTION QNT. INQUIRY
PRODUCT SERIES NSM-205GP     CR DESCRIPTION4G+1G Combo Port Gigabit Unmanaged Ethernet Switch with 4 IEEE 802.3af/at PoE+ ports (RoHS)
This combination include other products.

Similar Products

LED Indicators
Status PWR1, PWR2, Power fail, 10/100M, 1000M, Link/Act, Power Device is detected
Ethernet
Ports 4 x RJ-45, 10/100/1000Base-T
1 x RJ45 /SFP Slot Combo, 10/100/1000Base-T
Standards IEEE 802.3 for 10Base-T
IEEE 802.3u for 100Base-TX
IEEE 802.3ab for 1000Base-T
IEEE 802.3x for Flow Control
IEEE 802.3af Power Over Ethernet
IEEE 802.3at Power Over Ethernet
Energy Efficient Ethernet (EEE) as per 802.3az; this provides power savings during idle network activity
Processing Type Store & forward, wire speed switching
MAC Table 8 K
Memory Bandwidth 10 Gbps
Frame Buffer Memory 1 Mbit
Flow Control IEEE802.3x flow control, back pressure flow control
Jumbo Frames 10 K for Speed 1000M
Isolation 1500 Vrms 1 minute
DIP Switch 100BaseSFP/1000BaseSFP and PoE/PoE+ setting
PoE Technology
PoE Compliance 100% IEEE 802.3at compliant
PoE Power Up to 30 watts per channel
PoE Operation Automatic detection and power management
PoE Pin Assignments V+ (pin 1, 2), V-(pin 3, 6)
PoE Disconnect Mode DC disconnect
Fiber
Ports 1 x 1000Base /100Base SFP slot
Power
Reverse Polarity Protection Yes
Input Range +18 ~ +55 VDC Redundant Dual Inputs
Redundant Power Inputs Yes
Consumption 0.13@ 48 VDC without PD loading; 3.1 A @ 48 VDC with PD full loading (30 W per ports)
0.25@ 24 VDC without PD loading; 6.2 A @ 24 VDC with PD full loading (30 W per ports)
Alarm Output Yes,Relay 1 A @ 30 VDC
Mechanical
Casing Metal
Dimensions (mm) DIN-rail mounting: 28 x 160 x 121 (W x L x H)
Wall mounting: 28 x 199 x 114 (W x L x H)
Installation DIN-rail mounting or wall mounting (optional)
Ingress Protection Rating IP30
Environment
Operating Temperature -40 °C ~ + 75 °C
Storage Temperature -40 °C ~ + 85 °C
Humidity 10% ~ 90% RH, non-condensing
