M-7069D-G

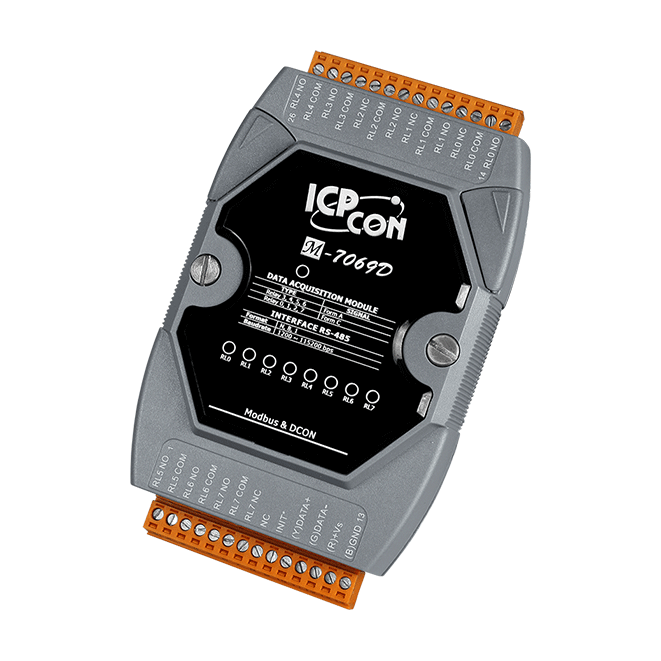

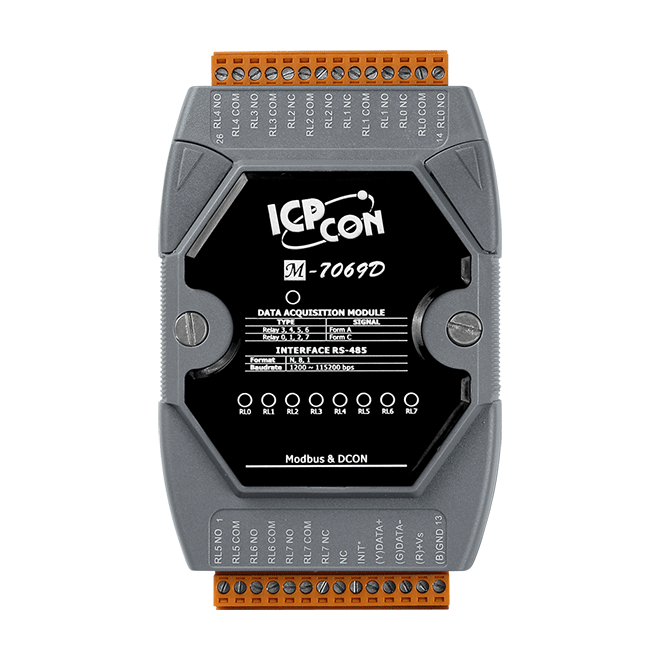

8-ch Power Relay (4x Form A and 4x Form C) Module with LED Display
M-7069D-G
M-7069D-G
M-7069D-G
M-7069D-G

Features

  • 4 Form A and 4 Form C Power Relay Outputs
  • Configurable Power-on Value and Safe Value Settings
  • Built-in Dual Watchdog
CE UKCA FCC RoHS WEEE

Introduction

The M-7068/M-7068D provides 4 Form A signal relay output channels and 4 Form C signal relay output channels, while The M-7069/M-7069D provides 4 Form A power relay output channels and 4 Form C power relay output channels. The M-7068D/M-7069D includes 8 LED indicators for channel status monitoring.

The M-7068(D)/M-7069(D) supports Modbus RTU and DCON protocols, which can be configured via software. There are also options for configuring power-on and safe values. 4 kV ESD, 4 kV EFT and 3 kV surge protection are also provided to enhance noise protection capabilities in industrial environments. The M-7068(D) is the ideal solution for small signal-switching applications, while The M-7069(D) is the perfect solution for high-power applications.

Applications


• Building Automation
• Factory Automation
• Machine Automation
• Remote Maintenance
• Remote Diagnosis
• Testing Equipment

Ordering Information

PRODUCT SERIES DESCRIPTION QNT. INQUIRY
PRODUCT SERIES M-7069D-G     CR DESCRIPTION8-ch Power Relay (4x Form A and 4x Form C) Module with LED Display, using DCON and Modbus Protocols (Gray Cover) (RoHS)
This combination include other products.

Similar Products

CPU Module
Watchdog Timer Module, Communication (Programmable)
Display
Type I/O LED Indicator
Isolation
Intra-module Isolation 3750 VDC
EMS Protection
EFT (IEC 61000-4-4) ±4 kV for 8 Relay and Power Line
±2 kV for RS-485 Port Line
ESD (IEC 61000-4-2) ±4 kV Contact for Each Terminal
±8 kV Air for Random Point
Surge (IEC 61000-4-5) ±3 kV for Power Line
LED Indicators
Status 1 x Power and Communication
8 x Relay Output
Relay Output
Channels 8 (4 x Form A, 4 x Form C)
Type Power Relay
Contact Material Silver Cadmium Alloy
Contact Rating Form A:
6 A @ 35 VDC
6 A @ 240 VAC

Form C:
5 A @ 30 VDC
5 A @ 250 VAC
Operate Time 5 ms (typical)
Release Time 1 ms (typical)
Electrical Endurance 1 x 10^5 ops.
Mechanical Endurance Form A: 30 x 10^6 ops.
Form C: 15 x 10^6 ops.
Power on Value Programmable
Safe Value Programmable
COM Ports
Ports 1 x RS-485
Baud Rate 1200 ~ 115200 bps
Data Format (N, 8, 1), (N, 8, 2), (E, 8, 1), or (O, 8, 1)
Protocol Modbus RTU, DCON
Power
Reverse Polarity Protection Yes
Input Range +10 ~ +30 VDC
Consumption 2.5 W Max.
Mechanical
Dimensions (mm) 72 x 123 x 35 (W x L x H)
Installation DIN-Rail Mounting
Environment
Operating Temperature -25 ~ +75 °C
Storage Temperature -40 ~ +85 °C
Humidity 10 ~ 95% RH, Non-condensing
