M-7065D-G

4-ch Isolated (Wet, 4~30 VDC) DI and 5-ch Power Relay Module with LED Display
M-7065D-G
M-7065D-G
M-7065D-G
M-7065D-G

Features

  • 4 Digital Inputs and 5 Relay Outputs
  • Sink- or Source-type Digital Input
  • Form A Power Relay Output
  • Digital Input Channels Can be Used as 16-bit Counters
  • Configurable Power-on Value and Safe Value Settings
  • Built-in Dual Watchdog
CE UKCA FCC RoHS WEEE

Introduction

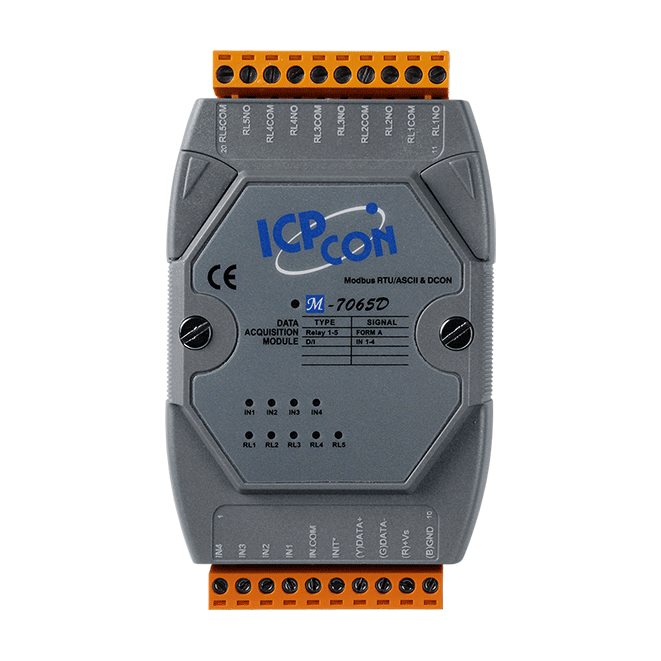

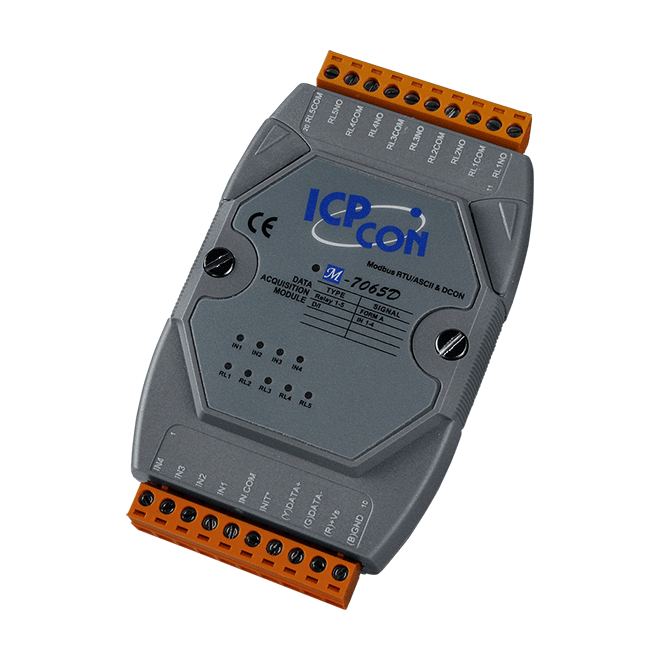

The M-7065/M-7065D provides 4 digital input channels and 5 Form A relay output channels. Digital input can be selected as either sink- or source-type via wire connections. All digital input channels are also able to be used as 16-bit counters. The M-7065D provides 9 LED indicators for channel status monitoring.

The M-7065(D) supports Modbus RTU and DCON protocols, which can be configured via software. There are also options for configuring power-on and safe values. 4 kV ESD protection and 3750 VDC intra-module isolation are also provided to enhance noise protection capabilities in industrial environments.

Applications


• Building Automation
• Factory Automation
• Machine Automation
• Remote Maintenance
• Remote Diagnosis
• Testing Equipment

Ordering Information

PRODUCT SERIES DESCRIPTION QNT. INQUIRY
PRODUCT SERIES M-7065D-G     CR DESCRIPTION4-ch Isolated (Wet, 4~30 VDC) DI and 5-ch Power Relay Module with LED Display, using DCON and Modbus Protocols (Gray Cover) (RoHS)
This combination include other products.

Similar Products

CPU Module
Watchdog Timer Module, Communication (Programmable)
Display
Type I/O LED Indicator
Isolation
Intra-module Isolation 3750 VDC
EMS Protection
EFT (IEC 61000-4-4) ±2 kV for Power Line
ESD (IEC 61000-4-2) ±4 kV Contact for Each Terminal
±8 kV Air for Random Point
LED Indicators
Status 1 x Power and Communication
9 x Digital Input/Relay Output
Digital Input/Counter
Channels 4
Type Wet Contact
Sink/Source (NPN/PNP) Sink/Source
ON Voltage Level +1 VDC Max.
OFF Voltage Level +4 ~ +30 VDC
Max. Counts 65535 (16-bit)
Frequency 100 Hz
Min. Pulse Width 5 ms
Input Impedance 3 kΩ
Overvoltage Protection ±35 VDC
Relay Output
Channels 5 (Form A)
Type Power Relay
Contact Material Gold-plated Silver Cadmium Alloy
Contact Rating 5 A @ 250 VAC
5 A @ 30 VDC
Operate Time 6 ms
Release Time 3 ms
Electrical Endurance 1 x 10^5 ops.
Mechanical Endurance 2 x 10^7 ops.
Power on Value Programmable
Safe Value Programmable
COM Ports
Ports 1 x RS-485
Baud Rate 1200 ~ 115200 bps
Data Format (N, 8, 1), (N, 8, 2), (E, 8, 1), or (O, 8, 1)
Protocol Modbus RTU, DCON
Power
Reverse Polarity Protection Yes
Input Range +10 ~ +30 VDC
Consumption 1.8 W
Mechanical
Dimensions (mm) 72 x 123 x 35 (W x L x H)
Installation DIN-Rail Mounting
Environment
Operating Temperature -25 ~ +75 °C
Storage Temperature -40 ~ +85 °C
Humidity 10 ~ 95% RH, Non-condensing
