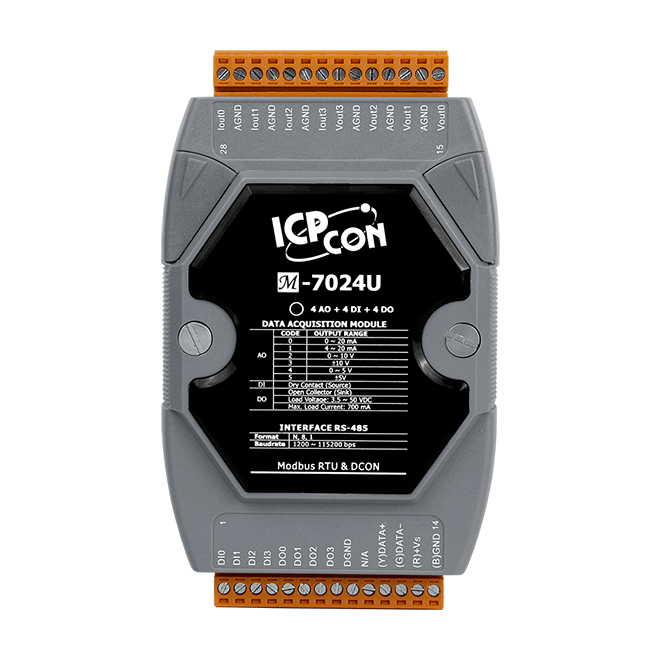

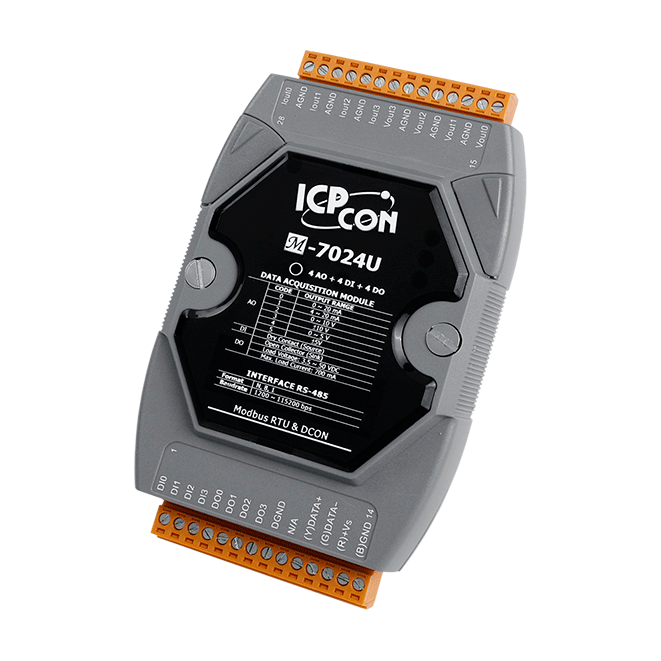

M-7024U-G
4-ch 16-bit AO Module with 4 DI and 4 DO
Features
- Multi-function (4 AO, 4 DI, and 4 DO)
- Source-type Current Output
- 16-bit Analog Output
- Individual Channel Configuration
- Open Wire Detection for Current Output
- Configurable Power-on Value and Safe Value Settings
Introduction
The M-7024U/M-7024UD is a multi-function module that includes 4 analog output channels, 4 digital input channels, and 4 digital output channels. It provides a programmable output range on all analog output channels (0 ~ 5 V, ±5 V, 0 ~ 10 V, ±10 V, +4 ~ +20 mA, or 0 ~ +20 mA). Each analog output channel can be configured for an individual range. The M-7024UD has 12 LED indicators for channel status monitoring. The M-7024U(D) supports Modbus RTU and DCON protocols, which can be configured via software. There are also options for configuring power-on and safe values. The module also features per-channel open wire detection for +4 ~ +20 mA outputs, together with 8 kV ESD protection as well as 2500 VDC intra-module isolation.
Applications
• Building Automation
• Factory Automation
• Machine Automation
• Remote Maintenance
• Remote Diagnosis
• Testing Equipment
Ordering Information
| PRODUCT SERIES | DESCRIPTION | QNT. | INQUIRY |
|---|---|---|---|
This combination include other products.
Similar Products
| CPU Module | |
|---|---|
| Watchdog Timer | Module, Communication (Programmable) |
| Isolation | |
|---|---|
| Intra-module Isolation | 2500 VDC |
| EMS Protection | |
|---|---|
| EFT (IEC 61000-4-4) | ±4 kV for Power Line |
| ESD (IEC 61000-4-2) | ±8 kV Contact for Each Terminal |
| LED Indicators | |
|---|---|
| Status | 1 x Power and Communication |
| Analog Output | |
|---|---|
| Channels | 4 |
| Type | Voltage Current |
| Range | Voltage: 0 ~ +5 VDC, ±5 VDC, 0 ~ +10 VDC, ±10 VDC Current: 0 ~ +20 mA, +4 ~ +20 mA |
| Resolution | 16-bit |
| Accuracy | ±0.02% of FSR |
| Short Circuit Protection | Yes |
| DA Output Response Time | 10 ms per channel |
| Programmable Output Slope | Voltage: 0.0625 ~ 512 V/Second Current: 0.125 ~ 1024 mA/Second |
| Current Output Wiring | Source |
| Open Wire Detection | For 4 ~ 20 mA Only |
| Current Load Resistance | 1000 Ω |
| Power-on Value | Programmable |
| Safe Value | Programmable |
| Digital Input/Counter | |
|---|---|
| Channels | 4 |
| Type | Dry Contact Wet Contact |
| ON Voltage Level | Dry: Close to GND Wet: +1 VDC Max. |
| OFF Voltage Level | Dry: Open Wet: +4 ~ +30 VDC |
| Max. Counts | 65535 (16-bit) |
| Frequency | 100 Hz |
| Min. Pulse Width | 5 ms |
| Effective Distance | 500 m Max. |
| Overvoltage Protection | +60 VDC |
| Digital Output | |
|---|---|
| Channels | 4 |
| Type | Open Collector |
| Sink/Source (NPN/PNP) | Sink |
| Load Voltage | +3.5 ~ +50 VDC |
| Load Current | 700 mA/Channel |
| Overvoltage Protection | 60 VDC |
| Overload Protection | 1.4 A |
| Short-circuit Protection | Yes |
| Power on Value | Programmable |
| Safe Value | Programmable |
| COM Ports | |
|---|---|
| Ports | 1 x RS-485 |
| Baud Rate | 1200 ~ 115200 bps |
| Data Format | (N, 8, 1), (N, 8, 2), (E, 8, 1), or (O, 8, 1) |
| Protocol | Modbus RTU, DCON |
| Power | |
|---|---|
| Reverse Polarity Protection | Yes |
| Input Range | +10 ~ +30 VDC |
| Consumption | 4.0 W |
| Mechanical | |
|---|---|
| Dimensions (mm) | 72 x 123 x 35 (W x L x H) |
| Installation | DIN-Rail Mounting |
| Environment | |
|---|---|
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +85 °C |
| Humidity | 10 ~ 95% RH, Non-condensing |
