M-7024L-G

4-ch 12-bit AO Module
M-7024L-G
M-7024L-G
M-7024L-G
M-7024L-G

Features

  • 4 Analog Outputs
  • Software Selectable Current or Voltage Output
  • Configurable Power-on Value and Safe Value Settings
  • Programmable Output Slope
  • Built-in Dual Watchdog
CE UKCA FCC RoHS WEEE

Introduction

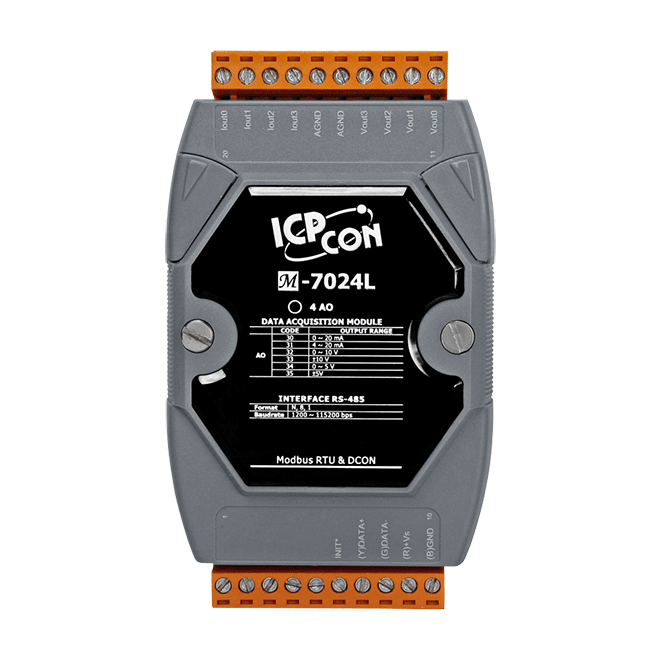

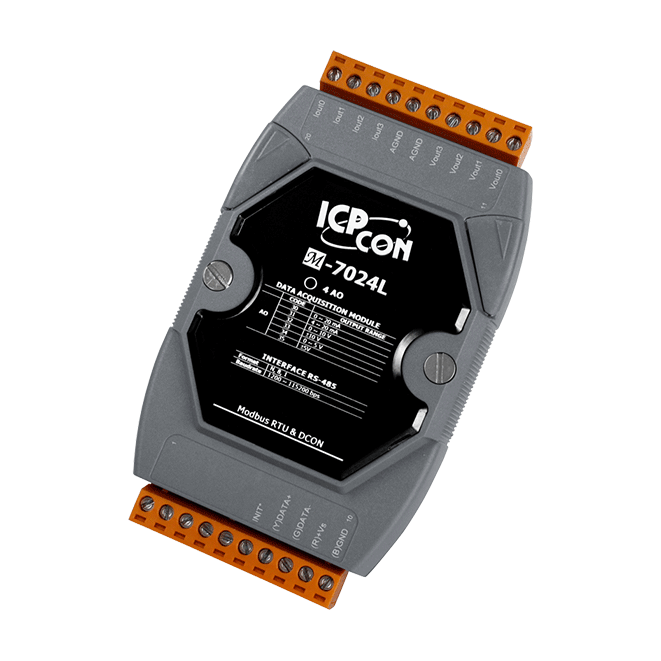

The M-7024L is a 12-bit, 4-channel analog output module that provides current and voltage outputs. The module features 3000 VDC intra-module isolation. The M-7024L supports Modbus RTU and DCON protocols, which can be configured via software. There are also options for configuring power-on and safe values.

Applications


• Building Automation
• Factory Automation
• Machine Automation
• Remote Maintenance
• Remote Diagnosis
• Testing Equipment

Ordering Information

PRODUCT SERIES DESCRIPTION QNT. INQUIRY
PRODUCT SERIES M-7024L-G     CR DESCRIPTION4-ch 12-bit AO Module using DCON and Modbus Protocols (Gray Cover) (RoHS)
This combination include other products.

Similar Products

CPU Module
Watchdog Timer Module, Communication (Programmable)
Isolation
Intra-module Isolation 3000 VDC
EMS Protection
ESD (IEC 61000-4-2) ±8 kV Contact for Each Terminal
LED Indicators
Status 1 x Power and Communication
Analog Output
Channels 4
Type Voltage
Current
Range Voltage: 0 ~ 5 V, ±5 V, 0 ~ 10 V, ±10 V
Current: 0 ~ 20 mA, 4 ~ 20 mA
Resolution 12-bit
Accuracy ±0.1% of FSR
DA Output Response Time 10 ms
Power-on Value Programmable
Safe Value Programmable
COM Ports
Ports 1 x RS-485
Baud Rate 1200 ~ 115200 bps
Data Format (N, 8, 1), (N, 8, 2), (E, 8, 1), or (O, 8, 1)
Protocol Modbus RTU, DCON
Power
Reverse Polarity Protection Yes
Input Range +10 ~ +30 VDC
Consumption 2.7 W
Mechanical
Dimensions (mm) 72 x 123 x 35 (W x L x H)
Installation DIN-Rail Mounting
Environment
Operating Temperature -25 ~ +75 °C
Storage Temperature -40 ~ +85 °C
Humidity 10 ~ 95% RH, Non-condensing
