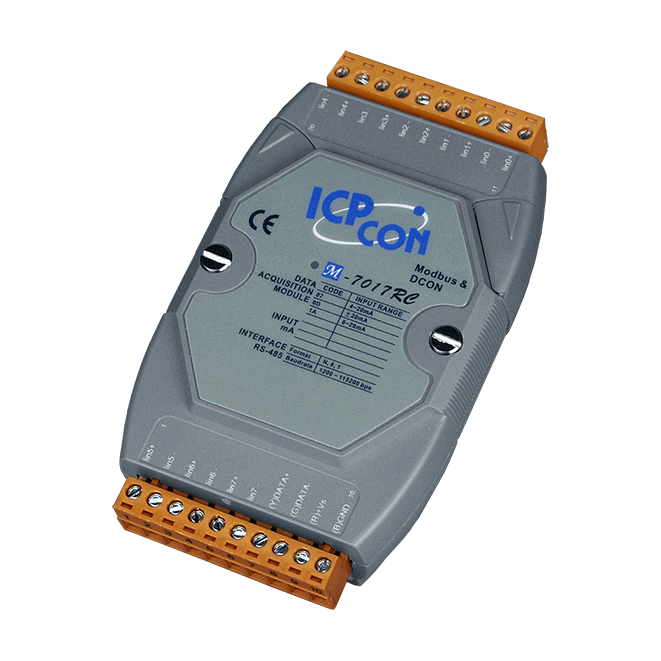

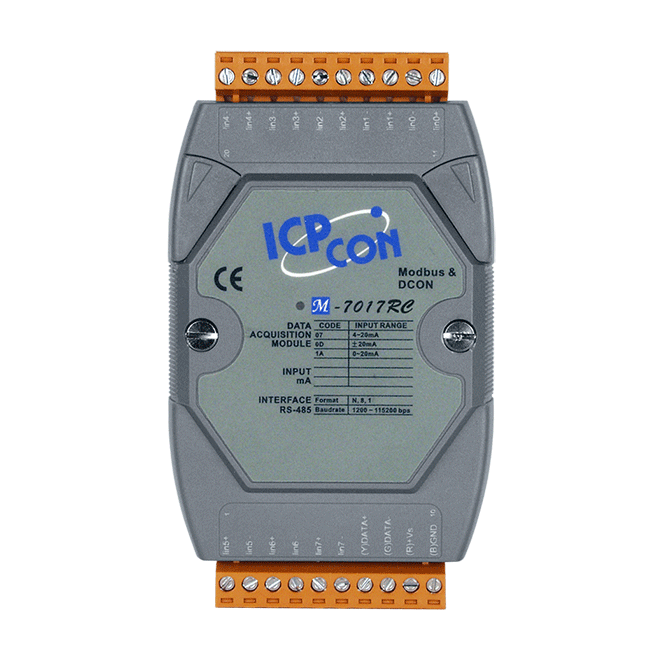

M-7017RC-G

8-ch Current Input Module with High Voltage Protection
M-7017RC-G
M-7017RC-G
M-7017RC-G
M-7017RC-G

Features

  • Current Input Only
  • Built-in Resistor to Simplify Current Measurement
  • High Common Voltage Protection
  • Adjustable Sampling Rate (Fast/Normal Mode)
  • Open Wire Detection for 4 ~ 20 mA Input
CE UKCA FCC RoHS WEEE

Introduction

The M-7017RC is an 8-channel current input module that is specifically designed to measure current only. Its user-friendly design saves both time and effort when measuring a current thanks to a built-in resistor, meaning that you can now measure current directly without adding an external resistor. The M-7017RC is an upgraded version of the M-7017C, with the only difference being that The M-7017RC is much more suitable for critically harsh environments.

The M-7017RC also has 4 kV ESD protection and ± 200 VDC common voltage as current input protection and also features 3000 VDC intra-module isolation and open wire detection for 4 ~ 20 mA input. The sampling rate of the M-7017RC is adjustable, meaning that either fast mode or normal mode can be set. The M-7017RC supports Modbus RTU and DCON protocols, which can be configured via software, and all hardware specifications are the same as the I-7017RC.

Applications


• Building Automation
• Factory Automation
• Machine Automation
• Remote Maintenance
• Remote Diagnosis
• Testing Equipment

Ordering Information

PRODUCT SERIES DESCRIPTION QNT. INQUIRY
PRODUCT SERIES M-7017RC-G     CR DESCRIPTION8-ch Current Input Module with High Voltage Protection using DCON and Modbus Protocols (Gray Cover) (RoHS)
This combination include other products.

Similar Products

CPU Module
Watchdog Timer Module, Communication (Programmable)
Isolation
Intra-module Isolation 3000 VDC
EMS Protection
EFT (IEC 61000-4-4) ±4 kV for Power Line
ESD (IEC 61000-4-2) ±4 kV Contact for Each Terminal
Surge (IEC 61000-4-5) ±0.5 kV for Power Line
LED Indicators
Status 1 x Power and Communication
Analog Input
Channels 8 Differential
Type Current
Range ±20 mA, 0 ~ 20 mA, 4 ~ 20 mA
Resolution 16-bit
Accuracy Normal Mode: 0.1% of FSR
Fast Mode: 0.5 % of FSR
Sampling Rate Normal Mode: 10 Hz
Fast Mode: 60 Hz
Input Impedance Current: 125 Ω
Common Voltage Protection ±200 VDC
Overcurrent Protection 50 mA at 110 VDC
Channel-to-Channel Isolation 400 VDC
Open Wire Detection For 4 ~ 20 mA Only
COM Ports
Ports 1 x RS-485
Baud Rate 1200 ~ 115200 bps
Data Format (N, 8, 1), (N, 8, 2), (E, 8, 1), or (E, 8, 2)
Protocol Modbus RTU, DCON
Power
Reverse Polarity Protection Yes
Input Range +10 ~ +30 VDC
Consumption 1.3 W
Mechanical
Dimensions (mm) 72 x 123 x 35 (W x L x H)
Installation DIN-Rail Mounting
Environment
Operating Temperature -25 ~ +75 °C
Storage Temperature -40 ~ +85 °C
Humidity 10 ~ 95% RH, Non-condensing
