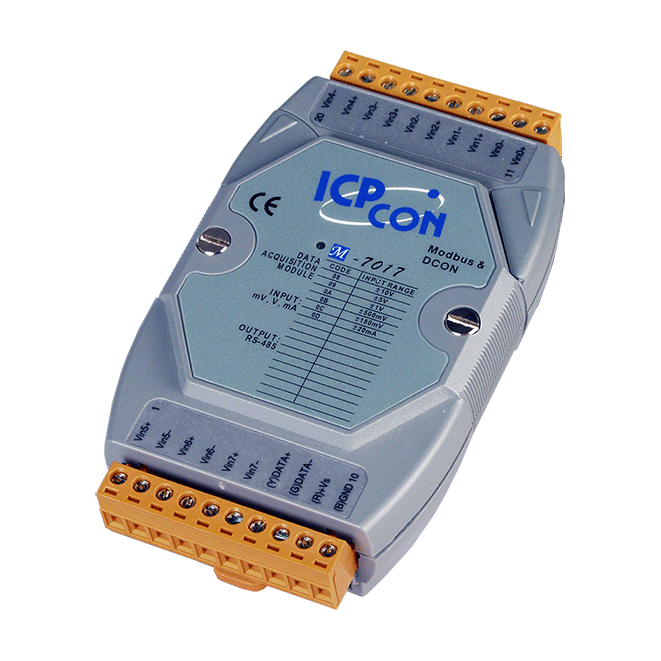

M-7017-G

8-ch AI Module

Features

8 Differential Analog Inputs
Voltage and Current Inputs
High Resolution: 16-bit
Open Wire Detection for 4 ~ 20 mA
Built-in Dual Watchdog

Introduction

The M-7017 is an analog input module that provides 8 differential input channels. The input type includes both voltage and current, and all channels are available for the same input range. An optional external 125 Ω resistor is required for current input. The modules also feature 3000 VDC intra-module isolation as well as ±120 VDC overvoltage protection. The M-7017 supports Modbus RTU and DCON protocols, which can be configured via software, and only provides differential analog input channels. Other hardware specifications are the same as the I-7017.

Applications

• Building Automation
• Factory Automation
• Machine Automation
• Remote Maintenance
• Remote Diagnosis
• Testing Equipment

Ordering Information

PRODUCT SERIES	DESCRIPTION	QNT.	INQUIRY
PRODUCT SERIES M-7017-G CR	DESCRIPTION8-ch AI Module using DCON and Modbus Protocols (Gray Cover) (RoHS)

This combination include other products.

Similar Products

Available soon

Will be phased out

Phased out

CPU Module
Watchdog Timer	Module, Communication (Programmable)

Isolation
Intra-module Isolation	3000 VDC

EMS Protection
ESD (IEC 61000-4-2)	±4 kV Contact for Each Terminal
RS Immunity (IEC 61000-4-3)	±4 kV for Power Line

LED Indicators
Status	1 x Power and Communication

Analog Input
Channels	8 Differential
Type	Voltage Current
Range	Voltage: ±150 mV, ±500 mV, ±1V, ±5 V, ±10 V Current: ±20 mA, 0 ~ 20 mA, 4 ~ 20 mA (requires optional external 125 Ω resistor)
Resolution	16-bit
Accuracy	±0.1% of FSR
Sampling Rate	10 Hz
Input Impedance	20 MΩ
Common Voltage Protection	±15 VDC
Overvoltage Protection	±120 VDC

COM Ports
Ports	1 x RS-485
Baud Rate	1200 ~ 115200 bps
Data Format	(N, 8, 1), (N, 8, 2), (E, 8, 1), or (O, 8, 1)
Protocol	Modbus RTU, DCON

Power
Reverse Polarity Protection	Yes
Input Range	+10 ~ +30 VDC
Consumption	1.3 W

Mechanical
Dimensions (mm)	72 x 123 x 35 (W x L x H)
Installation	DIN-Rail Mounting

Environment
Operating Temperature	-25 ~ +75 °C
Storage Temperature	-40 ~ +85 °C
Humidity	10 ~ 95% RH, Non-condensing
