M-7015-G

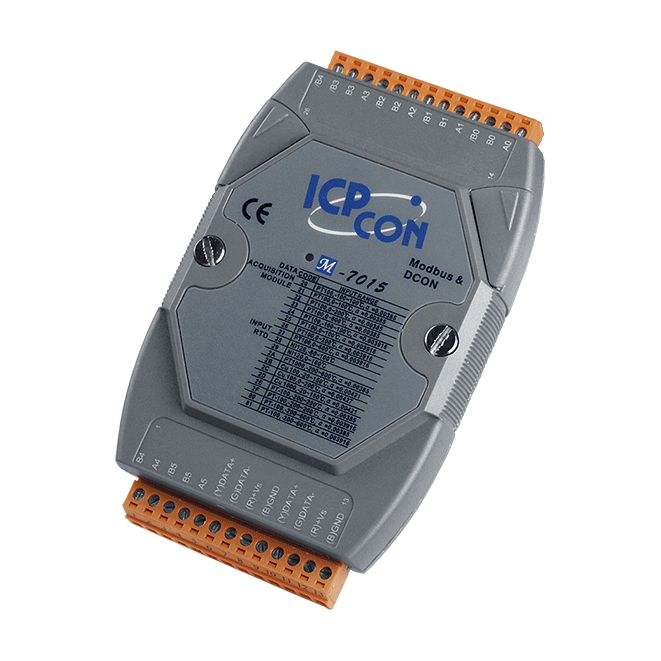

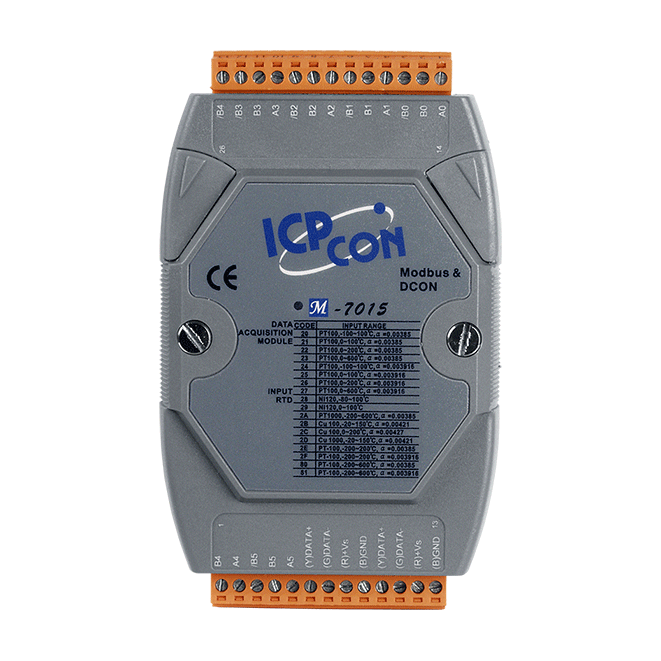

6-ch RTD Input Module
M-7015-G
M-7015-G
M-7015-G
M-7015-G

Features

  • 6 RTD Inputs
  • Lead Resistance Elimination for 3-wire Connection
  • High Resolution: 16-bit
  • Open Wire Detection
  • Built-in Dual Watchdog
CE UKCA FCC RoHS WEEE

Introduction

The M-7015 is a 6-channel RTD input module that is used for measuring temperatures using RTD sensors and each channel can be connected to a different type of sensor. The M-7015 is fully RoHS-compliant and features 4 kV ESD protection as well as 3000 VDC intra-module isolation. The M-7015 supports Modbus RTU and DCON protocols, which can be configured via software, and all hardware specifications are the same as the I-7015.

Applications


• Building Automation
• Factory Automation
• Machine Automation
• Remote Maintenance
• Remote Diagnosis
• Testing Equipment

Ordering Information

PRODUCT SERIES DESCRIPTION QNT. INQUIRY
PRODUCT SERIES M-7015-G     CR DESCRIPTION6-ch RTD Input Module using DCON and Modbus Protocols (Gray Cover) (RoHS)
This combination include other products.

Similar Products

CPU Module
Watchdog Timer Module, Communication (Programmable)
Isolation
Intra-module Isolation 3000 VDC
EMS Protection
EFT (IEC 61000-4-4) ±4 kV for Power Line
ESD (IEC 61000-4-2) ±4 kV Contact for Each Terminal
LED Indicators
Status 1 x Power and Communication
Analog Input
Channels 6
Type RTD
Sensor Type Pt100, Pt1000, Ni120, Cu50, Cu100, Cu1000
Resistance Measurement 3.2 kΩ Max.
Resolution 16-bit
Accuracy ±0.05% of FSR
Sampling Rate 12 Hz (Total)
Overvoltage Protection 120 VDC
Individual Channel Configuration Yes
Open Wire Detection Yes
COM Ports
Ports 1 x RS-485
Baud Rate 1200 ~ 115200 bps
Data Format (N, 8, 1), (N, 8, 2), (E, 8, 1), or (O, 8, 1)
Protocol Modbus RTU, DCON
Power
Reverse Polarity Protection Yes
Input Range +10 ~ +30 VDC
Consumption 1.1 W
Mechanical
Dimensions (mm) 72 x 123 x 35 (W x L x H)
Installation DIN-Rail Mounting
Environment
Operating Temperature -25 ~ +75 °C
Storage Temperature -40 ~ +85 °C
Humidity 10 ~ 95% RH, Non-condensing
