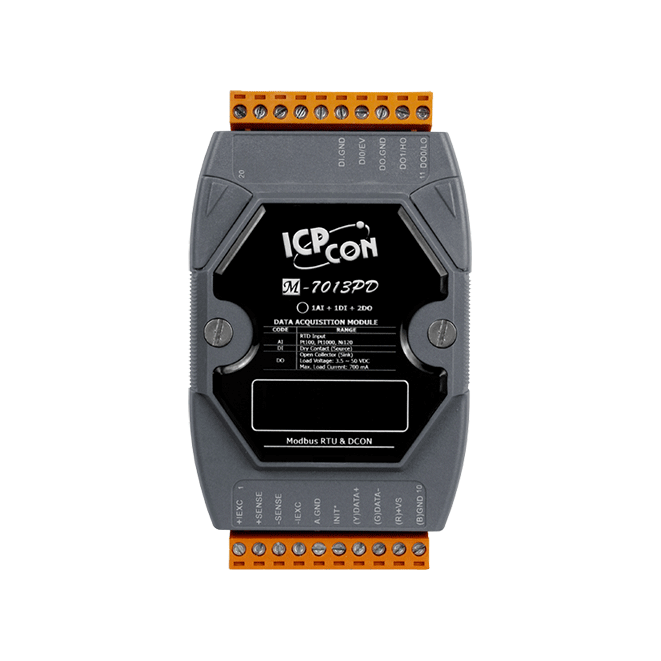

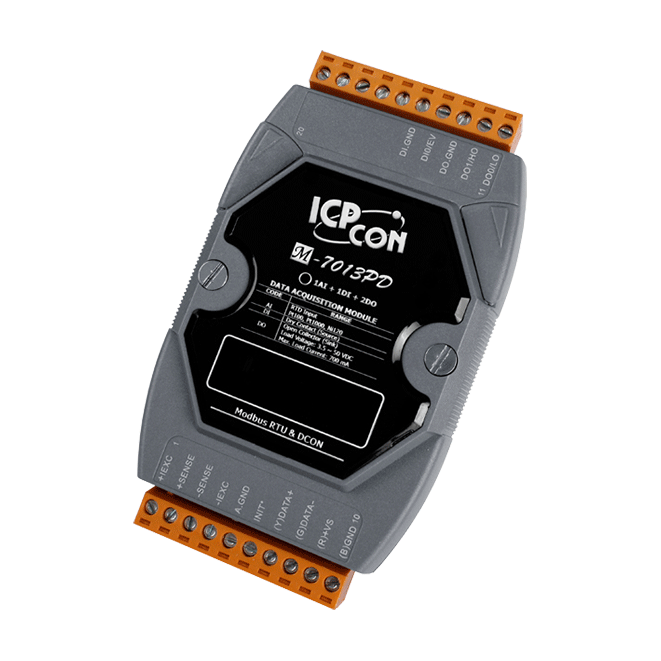

M-7013PD-G
1-ch RTD Input Module with 1-ch DI, 2-ch DO, and LED Display
Features
- 1 RTD Input
- Lead Resistance Elimination for 3/4-wire Connection
- 50 Hz Event Counter for Digital Input
- High/Low Alarm for Digital Output
- Open Wire Detection
- Built-in Dual Watchdog
Introduction
The M-7013P/M-7013PD is a 1-channel RTD Input module that is used for measuring temperatures via an RTD sensor and supports Pt100, Ni120, and Pt1000 types of sensors. The module allows 2/3/4-wire RTD connections and features open-wire detection. In addition, The M-7013P(D) also includes 3000 VDC intra-module isolation and supports lead resistance elimination for 3/4-wire connections. The module added support for 1-channel digital input as a 50 Hz event counter and 2-channel digital output as a high/low alarm. The M-7013P(D) supports Modbus RTU and DCON protocols, which can be configured via software.
Applications
• Building Automation
• Factory Automation
• Machine Automation
• Remote Maintenance
• Remote Diagnosis
• Testing Equipment
Ordering Information
| PRODUCT SERIES | DESCRIPTION | QNT. | INQUIRY |
|---|---|---|---|
This combination include other products.
Similar Products
| CPU Module | |
|---|---|
| Watchdog Timer | Module, Communication (Programmable) |
| Display | |
|---|---|
| Type | 5-Digit 7 Segment LED Display |
| Isolation | |
|---|---|
| Intra-module Isolation | 3000 VDC |
| EMS Protection | |
|---|---|
| EFT (IEC 61000-4-4) | ±4 kV for Power Line |
| ESD (IEC 61000-4-2) | ±4 kV Contact for Each Terminal ±8 kV Air for Random Point |
| Surge (IEC 61000-4-5) | ±0.5 kV for Power Line |
| LED Indicators | |
|---|---|
| Status | 1 x Power and Communication |
| Analog Input | |
|---|---|
| Channels | 1 |
| Type | RTD |
| Sensor Type | Pt100, Pt1000, Ni120 |
| Resistance Measurement | 3.2 kΩ Max. |
| Resolution | 16-bit |
| Accuracy | ±0.05% of FSR |
| Sampling Rate | 10 Hz |
| Overvoltage Protection | ±5 VDC |
| Open Wire Detection | Yes |
| 3-wire RTD Lead Resistance Elimination | Yes |
| Digital Input/Counter | |
|---|---|
| Channels | 1 |
| Type | Dry Contact |
| Sink/Source (NPN/PNP) | Source |
| ON Voltage Level | Close to GND |
| OFF Voltage Level | Open |
| Max. Counts | 65535 (16-bit) |
| Frequency | 50 Hz |
| Overvoltage Protection | ±30 VDC |
| Digital Output | |
|---|---|
| Channels | 2 |
| Type | Open Collector, MOSFET |
| Sink/Source (NPN/PNP) | Sink |
| Load Voltage | +3.5 ~ +50 VDC |
| Load Current | 700 mA/Channel |
| Overvoltage Protection | 60 VDC |
| Overload Protection | 1.4 A |
| Short-circuit Protection | Yes |
| Power on Value | Programmable |
| Safe Value | Programmable |
| COM Ports | |
|---|---|
| Ports | 1 x RS-485 |
| Baud Rate | 1200 ~ 115200 bps |
| Data Format | (N, 8, 1), (N, 8, 2), (E, 8, 1), or (O, 8, 1) |
| Protocol | Modbus RTU, DCON |
| Power | |
|---|---|
| Reverse Polarity Protection | Yes |
| Input Range | +10 ~ +30 VDC |
| Consumption | 1.2 W |
| Mechanical | |
|---|---|
| Dimensions (mm) | 72 x 123 x 35 (W x L x H) |
| Installation | DIN-Rail Mounting |
| Environment | |
|---|---|
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +85 °C |
| Humidity | 10 ~ 95% RH, Non-condensing |
