LC-103H
1-channel AC Digital Input and 3-channel Relay Output Lighting Control Module with High Power Relay Output
Features
- Provide High Power Relay Output to turn ON/OFF the Lighting
- Support Lighting Module (Max.):
- Incandescent Lamp: 40 W/ 220 VAC * 8 Sets
- LED(Electronic ballast): 40 W/ 220 VAC * 10 Sets
- Isolated AC Digital Input
- Made from fire retardant materials (UL94-V0 Level)
- 5000 VDC Intra-Module Isolation
- ±2 kV Surge, ±4 kV ESD and EFT Protection
- Supports Modbus RTU and DCON Protocols
- Low power consumption
- DIN-Rail mounting
Introduction
The LC-103H is an easy-to-use lighting control module that requires no specialist skills to install and operate, and no software is needed in order to control the DO channels.
The LC-103H provides 1 channel for digital input (photo couple isolation) and 3 channels for relay output. All output channels are form A type relays, while the input channel is based on a sink-type using a wire connection. The input channel can directly control a 3-channel relay ON and OFF sequence without requiring a remote host controller. 4 kV ESD protection and 5000 Vrms intra-module isolation are also provided.
When required, communication with the LC-103H is programmable based on the DCON & Modbus RTU protocol, and an added benefit is that different addresses can be set for DCON & Modbus RTU communication via hardware configuration.
The LC-103H provides 1 channel for digital input (photo couple isolation) and 3 channels for relay output. All output channels are form A type relays, while the input channel is based on a sink-type using a wire connection. The input channel can directly control a 3-channel relay ON and OFF sequence without requiring a remote host controller. 4 kV ESD protection and 5000 Vrms intra-module isolation are also provided.
When required, communication with the LC-103H is programmable based on the DCON & Modbus RTU protocol, and an added benefit is that different addresses can be set for DCON & Modbus RTU communication via hardware configuration.

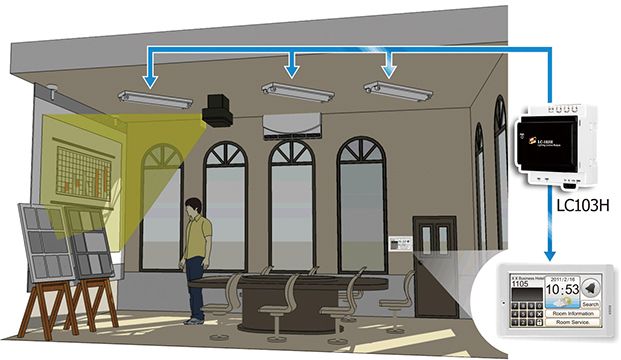

Applications
Ordering Information
| PRODUCT SERIES | DESCRIPTION | QNT. | INQUIRY |
|---|---|---|---|
This combination include other products.
Similar Products
| Software | |
|---|---|
| Function | Local and Remote Direct Control Relay ON/OFF and Remote Status Monitoring |
| EMS Protection | |
|---|---|
| EFT (IEC 61000-4-4) | ±2 kV for Power |
| ESD (IEC 61000-4-2) | ±2 kV Contact for Each Terminal ±4 kV Air for Random Point |
| Surge (IEC 61000-4-5) | ±2 kV for Power |
| LED Indicators | |
|---|---|
| Status | 1 LED as Power Indicator |
| Digital Input | |
|---|---|
| Channels | 1 |
| Type | Wet Contact, 90 ~ 240 VAC |
| ON Voltage Level | 65 VAC |
| OFF Voltage Level | 56 VAC |
| Isolation | 5000 Vrms |
| Input Impedance | 68 KΩ, 1 W |
| Relay Output | |
|---|---|
| Channels | 3 |
| Type | Power Relay, Form A (SPST N.O.) |
| Contact Rating | 16 A @ 250 VAC or 16 A @ 30 VDC |
| Operate Time | 10 ms Max. |
| Release Time | 5 ms Max. |
| Electrical Endurance | 120,000 ops. |
| Mechanical Endurance | 5,000,000 ops. |
| Application Specification | (1).Incandescent Lamp: 40W/ 220VAC * 8 Sets (2).LED(Electronic ballast): 40W/ 220VAC *10 Sets |
| COM Ports | |
|---|---|
| Ports | 1 x RS-485 |
| Baud Rate | 9600 bps |
| Data Format | (N, 8, 1) |
| Protocol | Modbus RTU/DCON |
| Power | |
|---|---|
| Input Range | 10 ~ 30 VDC |
| Consumption | 0.5 W Max. |
| Mechanical | |
|---|---|
| Dimensions (mm) | 72 x 100 x 59 (W x L x H) |
| Installation | DIN-Rail |
| Environment | |
|---|---|
| Operating Temperature | -25 ~ +75°C |
| Storage Temperature | -30 ~ +75°C |
| Humidity | 10 ~ 95% RH, Non-condensing |
