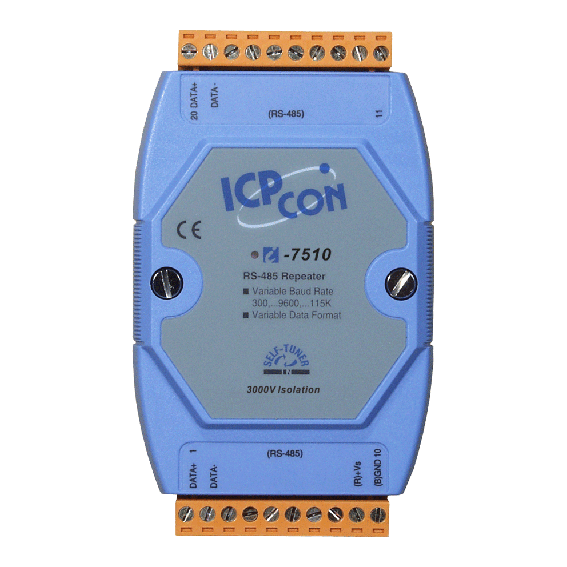

Isolated RS-485 Repeater
I-7510
I-7510
I-7510
I-7510

Features


• Automatic RS-485 Direction Control
• Transmission Speed of up to 115200 bps
• 2-way 3000 VDC Isolation Protection
• ESD Protection for RS-485 Data Line
CE UKCA FCC RoHS WEEE

Introduction

The I-7510 provides 2-way optical isolation between one piece of RS-485 equipment and the rest of the system. It can also be used as a repeater to extend the transmission of an existing network. Additionally, an RS-485 system can be expanded beyond the 256 node limitation imposed by the standard. It can also be used to convert a 2-wire RS-485 signal, and vice versa.

The I-7510AR is exactly the same as the I-7510A, except for the isolation side. The isolation side of the I-7510A is located in the input interface circuit, but the isolation side of the I-7510AR is located in the input and output interface circuit. In other words the I-7510AR is 3-way isolation repeater module.

Applications

Ordering Information

PRODUCT SERIES DESCRIPTION QNT. INQUIRY
PRODUCT SERIES I-7510     CR DESCRIPTIONIsolated RS-485 Repeater (Blue Cover) (RoHS)
This combination include other products.

Similar Products

Isolation
Intra-module Isolation 2-way 3 kV Isolated
EMS Protection
ESD (IEC 61000-4-2) Yes
LED Indicators
Status 1 x Power and Communication
COM Ports
Ports 1 x RS-485
Baud Rate 300 ~ 115200 bps
Power
Input Range +10 VDC ~ +30 VDC
Consumption 2.2 W
Mechanical
Casing Plastic
Dimensions (mm) 72 x 35 x 122 (W x L x H)
Installation DIN-Rail Mounting
Environment
Operating Temperature -25 ~ +75 °C
Storage Temperature -30 ~ +80 °C
Humidity 10 ~ 90% RH, Non-condensing
