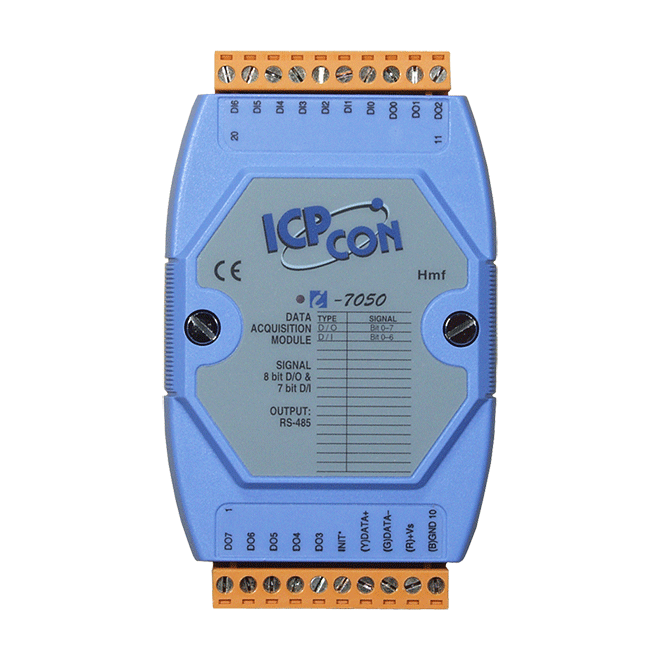

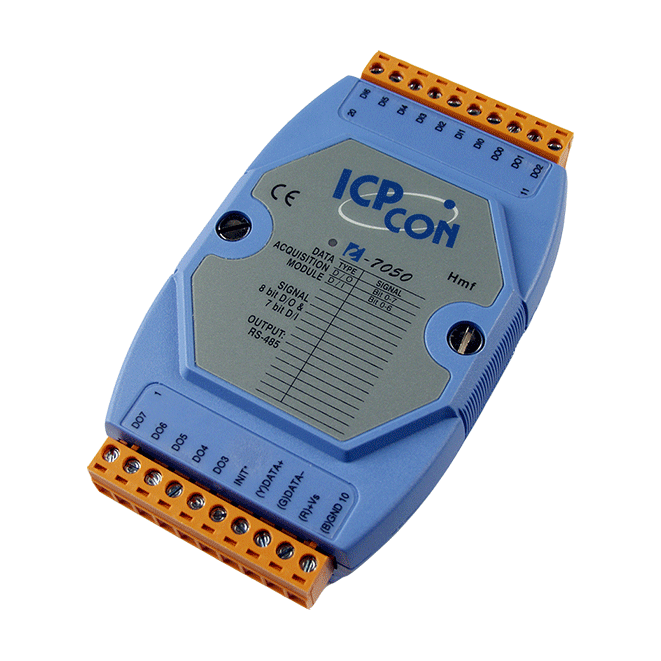

I-7050

7-ch Non-isolated (Dry) DI and 8-ch Non-isolated (Sink, NPN) DO Module
I-7050
I-7050
I-7050
I-7050

Features

  • 7 Digital Inputs and 8 Digital Outputs
  • Sink-type Open Collector Output
  • Digital Input Channels Can be Used as 16-bit Counters
  • Configurable Power-on Value and Safe Value Settings
  • Built-in Dual Watchdog
CE UKCA FCC RoHS WEEE

Introduction

The I-7050/I-7050D module offers 7 channels for digital input and 8 channels for digital output, each of which are non-isolated. The I-7050(D) supports sink- or source-type input, also sink-type open collector output. All input channels are able to be used as 16-bit counters. There are also options to enable both power-on and safe values. The I-7050D has 15 LED indicators that can be used to monitor channel status. The M-7050 has the same hardware specifications as the I-7050, but provides additional support for the Modbus RTU protocol as well as the DCON protocol.

Applications


• Building Automation
• Factory Automation
• Machine Automation
• Remote Maintenance
• Remote Diagnosis
• Testing Equipment

Ordering Information

PRODUCT SERIES DESCRIPTION QNT. INQUIRY
PRODUCT SERIES I-7050     CR DESCRIPTION7-ch Non-isolated (Dry) DI and 8-ch Non-isolated (Sink, NPN) DO Module using DCON Protocol (Blue Cover) (RoHS)
This combination include other products.

Similar Products

CPU Module
Watchdog Timer Module, Communication (Programmable)
LED Indicators
Status 1 x Power and Communication
Digital Input/Counter
Channels 7
Type Dry Contact
Sink/Source (NPN/PNP) Source
ON Voltage Level Open
OFF Voltage Level Close to GND
Max. Counts 65535 (16-bit)
Frequency 100 Hz
Min. Pulse Width 5 ms
Effective Distance 500 m Max.
Input Impedance 100 kΩ
Digital Output
Channels 8
Type Open Collector
Sink/Source (NPN/PNP) Sink
Load Voltage +3.5 ~ +30 VDC
Load Current 30 mA/channel
Power on Value Programmable
Safe Value Programmable
COM Ports
Ports 1 x RS-485
Baud Rate 1200 ~ 115200 bps
Data Format (N, 8, 1), (N, 8, 2), (E, 8, 1), or (O, 8, 1)
Protocol DCON
Power
Reverse Polarity Protection Yes
Input Range +10 ~ +30 VDC
Consumption 0.4 W
Mechanical
Dimensions (mm) 72 x 123 x 35 (W x L x H)
Installation DIN-Rail Mounting
Environment
Operating Temperature -25 ~ +75 °C
Storage Temperature -40 ~ +85 °C
Humidity 10 ~ 95% RH, Non-condensing
