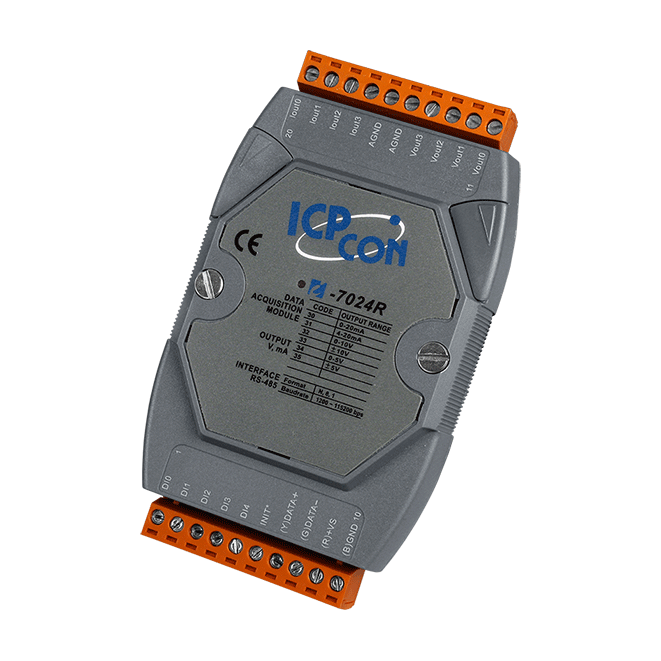

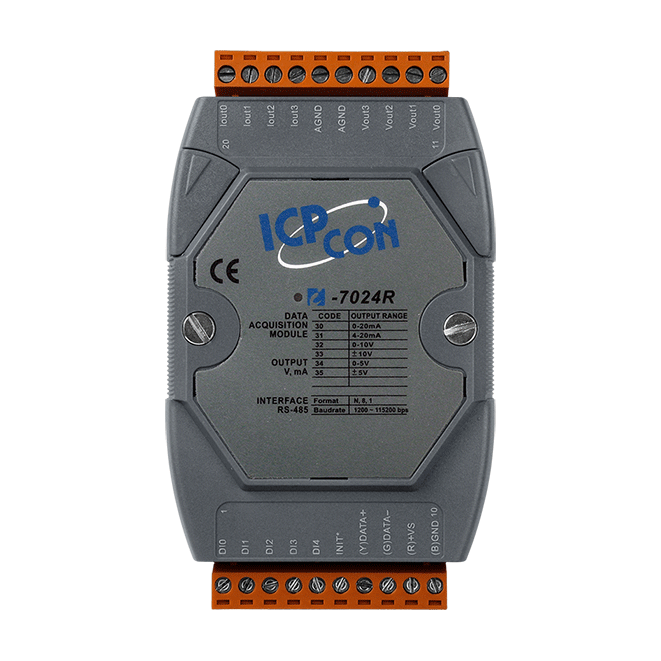

I-7024R-G
4-ch 14-bit AO Module with 5-ch DI
Features
- 4 Analog Outputs and 5 Digital Inputs
- Software Selectable Current or Voltage Output
- Power-on Value Setting
- Safe Value Setting
- Programmable Output Slope
- Built-in Dual Watchdog
Introduction
The I-7024 is a 14-bit 4-channel analog output module that provides current and voltage outputs. There are options for power-on values and safe values. It features 3000 VDC intra-module isolation. The I-7024R is the same as the I-7024 and provides additional 5-channel digital inputs and 4 KV ESD protection on each terminal. The M-7024/M-7024R support Modbus RTU and DCON protocols and can be configured via software. Their hardware specifications are the same as those of the I-7024/I-7024R.
Applications
• Building Automation
• Factory Automation
• Machine Automation
• Remote Maintenance
• Remote Diagnosis
• Testing Equipment
Ordering Information
| PRODUCT SERIES | DESCRIPTION | QNT. | INQUIRY |
|---|---|---|---|
This combination include other products.
Similar Products
| CPU Module | |
|---|---|
| Watchdog Timer | Module, Communication (Programmable) |
| Isolation | |
|---|---|
| Intra-module Isolation | 3000 VDC |
| EMS Protection | |
|---|---|
| EFT (IEC 61000-4-4) | ±4 kV for Power Line |
| ESD (IEC 61000-4-2) | ±4 kV Contact for Each Terminal |
| RS Immunity (IEC 61000-4-3) | 5 V/m, 80 MHz ~ 1GHz |
| LED Indicators | |
|---|---|
| Status | 1 x Power and Communication |
| Analog Output | |
|---|---|
| Channels | 4 |
| Type | Voltage Current |
| Range | Voltage: 0 ~ 5 V, ±5 V, 0 ~ 10 V, ±10 V Current: 0 ~ 20 mA, 4 ~ 20 mA |
| Resolution | 14-bit |
| Accuracy | ±0.1% of FSR |
| DA Output Response Time | 10 ms |
| Power-on Value | Programmable |
| Safe Value | Programmable |
| Digital Input/Counter | |
|---|---|
| Channels | 5 |
| Type | Dry Contact |
| Sink/Source (NPN/PNP) | Source |
| ON Voltage Level | Close to GND |
| OFF Voltage Level | Open |
| Max. Counts | 65535 (16-bit) |
| Frequency | 50 Hz |
| Min. Pulse Width | 10 ms |
| COM Ports | |
|---|---|
| Ports | 1 x RS-485 |
| Baud Rate | 1200 ~ 115200 bps |
| Data Format | (N, 8, 1), (N, 8, 2), (E, 8, 1), or (O, 8, 1) |
| Protocol | DCON |
| Power | |
|---|---|
| Reverse Polarity Protection | Yes |
| Input Range | +10 ~ +30 VDC |
| Consumption | 3.2 W |
| Mechanical | |
|---|---|
| Dimensions (mm) | 72 x 123 x 35 (W x L x H) |
| Installation | DIN-Rail Mounting |
| Environment | |
|---|---|
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +85 °C |
| Humidity | 10 ~ 95% RH, Non-condensing |
