I-2542-A25

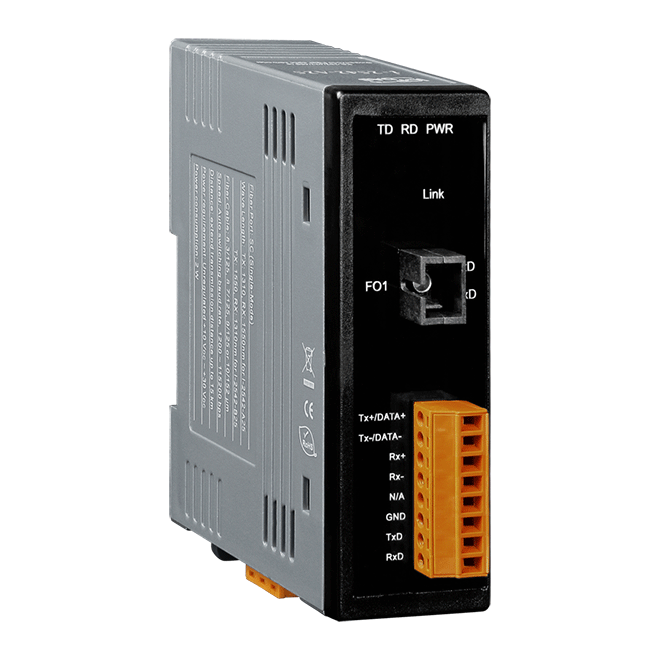

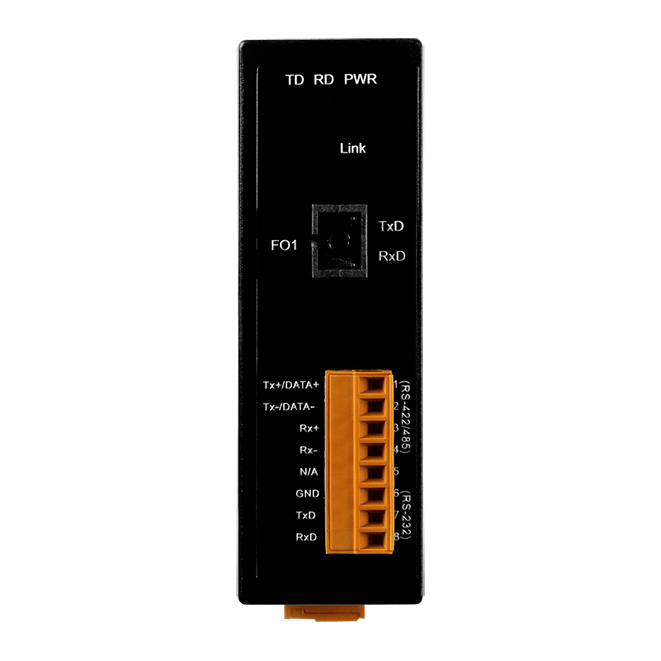

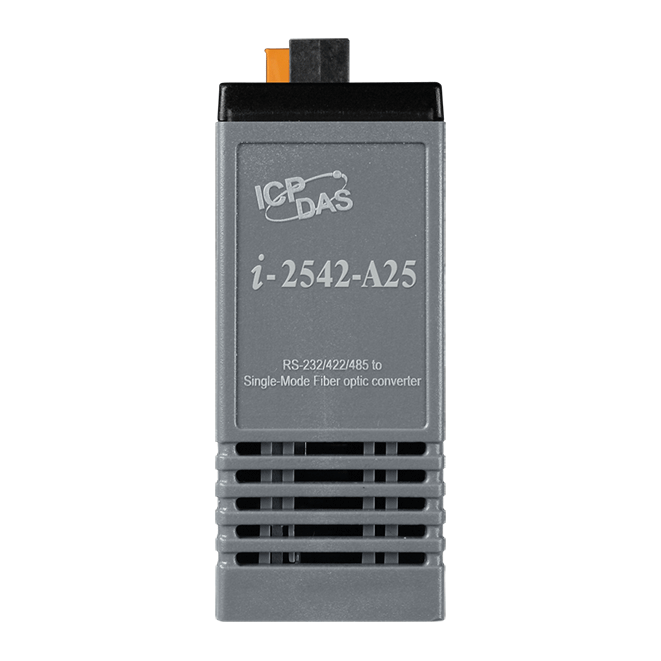

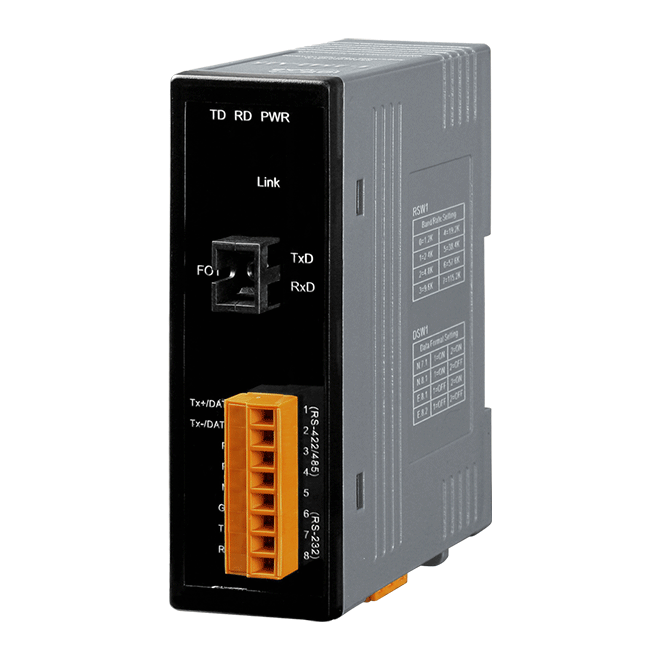

RS-232/422/485 to Single-Mode 25 Km, SC Fiber optic converter, TX 1310 nm, RX 1550 nm
I-2542-A25
I-2542-A25
I-2542-A25
I-2542-A25
I-2542-A25
I-2542-A25
I-2542-A25
I-2542-A25
I-2542-A25
I-2542-A25

Features

  • Automatic RS-485 Direction Control
  • Avoids lightning strikes and EMI/RFI interference
  • ESD Protection for the RS-232/422/485 Data Line
CE UKCA FCC RoHS WEEE

Introduction

The I-2542 series of Single-Strand Fiber Converters supports Wavelength Division Multiplexing (WDM) technology that allows two independent data communication channels to transmit and receive over one standard, single mode, fiber optic line. This not only doubles your existing bandwidth, but also effectively reduces the cost of creating a new fiber optic infrastructure.

The I-2542-A25 and I-2542-B25 is a pair.

Applications

I-2542 application

Ordering Information

PRODUCT SERIES DESCRIPTION QNT. INQUIRY
PRODUCT SERIES I-2542-A25     CR DESCRIPTIONRS-232/422/485 to Single-Mode 25 Km, SC Fiber optic converter, TX 1310 nm, RX 1550 nm (RoHS)
This combination include other products.

Similar Products

EMS Protection
ESD (IEC 61000-4-2) Yes
LED Indicators
Status 1 x Power and Communication
COM Ports
Ports 1 x RS-232/422/485
Baud Rate 1200 ~ 115200 bps
Fiber
Ports Single-Mode; SC connector x 1
Fiber Cable 8.3/125, 8.7/125, 9/125 or 10/125 μm
Transmission Distance (LoS) 25 km (9/125 μm recommended)
Wavelength TX: 1310, RX: 1550 nm
Power
Input Range +10 VDC ~ +30 VDC (Non-isolated)
Consumption 2 W
Mechanical
Casing Plastic
Dimensions (mm) 33 x 89 x 107 (W x L x H)
Installation DIN-Rail Mounting
Environment
Operating Temperature -25 ~ +75 °C
Storage Temperature -30 ~ +75 °C
Humidity 10 ~ 95% RH, Non-condensing

Specification Memo

Important Note: You must purchase both I-2542-A25 and I-2542-B25 since these products work as a pair.
