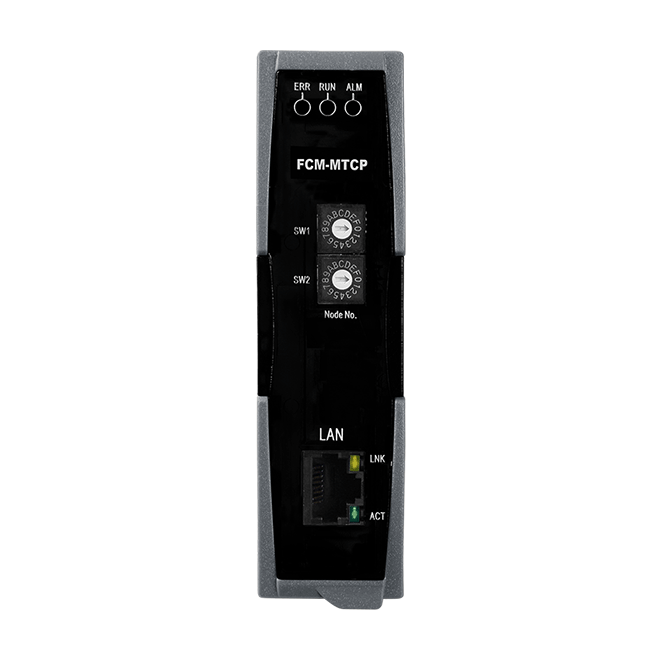

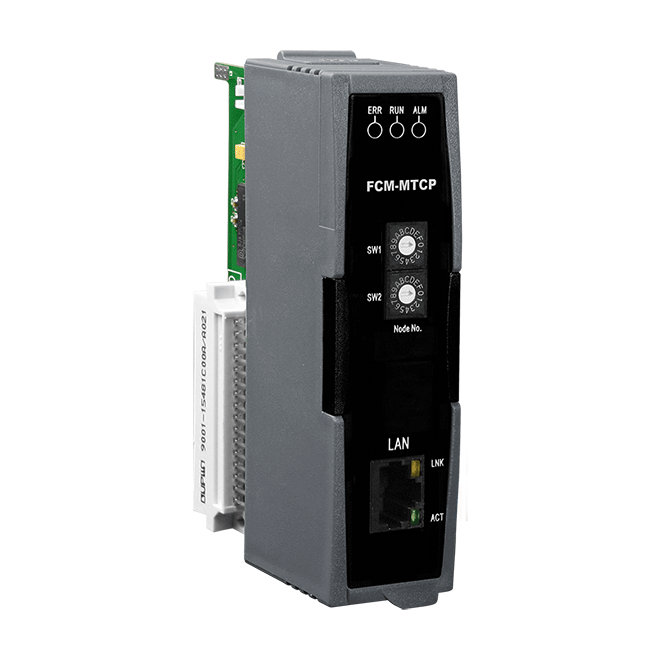

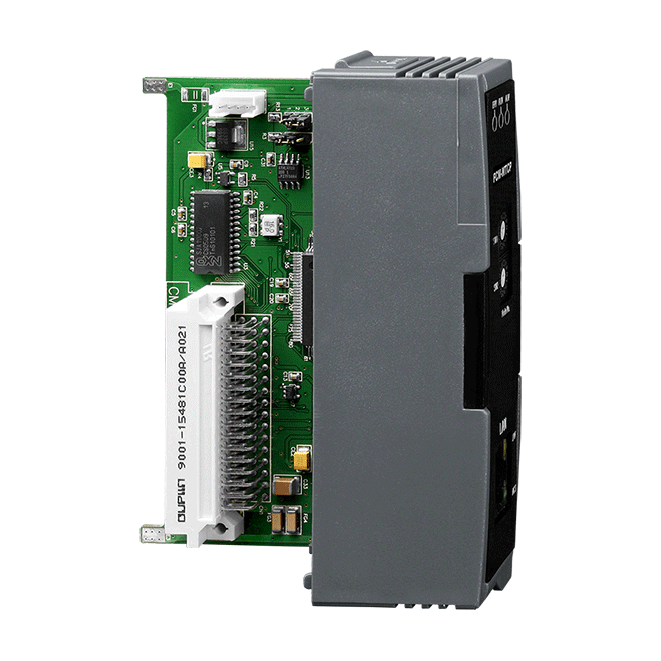

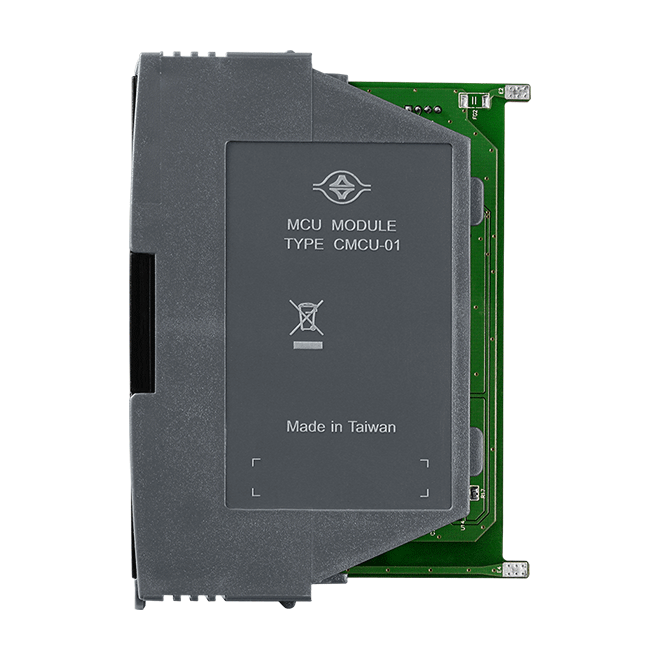

FCM-MTCP

Field Communication Module with Modbus/TCP slave
FCM-MTCP
FCM-MTCP
FCM-MTCP
FCM-MTCP
FCM-MTCP
FCM-MTCP
FCM-MTCP
FCM-MTCP

Features

Introduction

The FCP-MTCP is a communication module for the iDCS-8000 system. It supports Modbus/TCP slave, most well-known industrial protocol, for the PLCs or controllers which support Modbus/TCP master. This module also offers LED to indicate system diagnostic and Ethernet connection status locally. Besides, two rotary switches are provided to instant configure ID (IP address) for other FCM-MTCP. Moreover, the module offers 1000 VDC isolation between channels and backplane bus. If any high voltage or current damages the channels, the system (backplanes, other modules, and control unit) won't be affected because the benefit of isolation.

Applications

  • Building Automation
  • Factory Automation
  • Machine Automation
  • Remote Maintenance
  • Remote Diagnosis
  • Testing Equipment

Ordering Information

PRODUCT SERIES DESCRIPTION QNT. INQUIRY
PRODUCT SERIES FCM-MTCP DESCRIPTIONField Communication Module with Modbus/TCP slave (RoHS)
This combination include other products.

Similar Products

CPU Module
CPU 80186 or compatible (16-bit, 80MHz)
64-bit Hardware Serial Number Yes
EEPROM 16 Kbytes, 1,000,000 erase/write cycles
Flash 512 Kbytes, 100,000 erase/write cycles
SRAM 512 Kbytes
Watchdog Timer Yes
EMS Protection
EFT (IEC 61000-4-4) Yes
ESD (IEC 61000-4-2) Yes
LED Indicators
Status 1 x Run, 1 x HF, 1 x RF, 1 x Link, 1 x Act
Ethernet
Ports RJ-45, 10/100Base-T(X)
Protocol Modbus/TCP slave (Allow 4 connection access simultaneously)
Power
Consumption 2.1 W @ 24 VDC Max.
Mechanical
Dimensions (mm) 30 x 85 x 115
Weight 300 g
Environment
Operating Temperature -25 ~ +75 °C
Humidity 5 ~ 95% RH, Non-condensing
