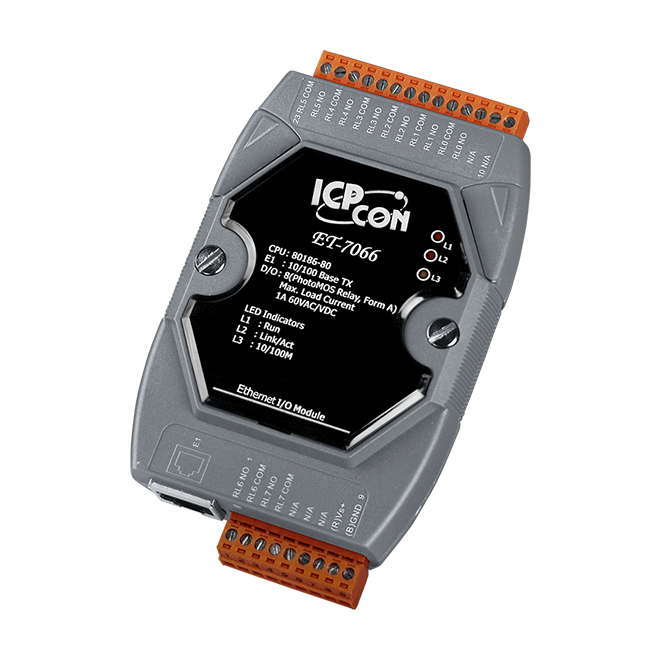

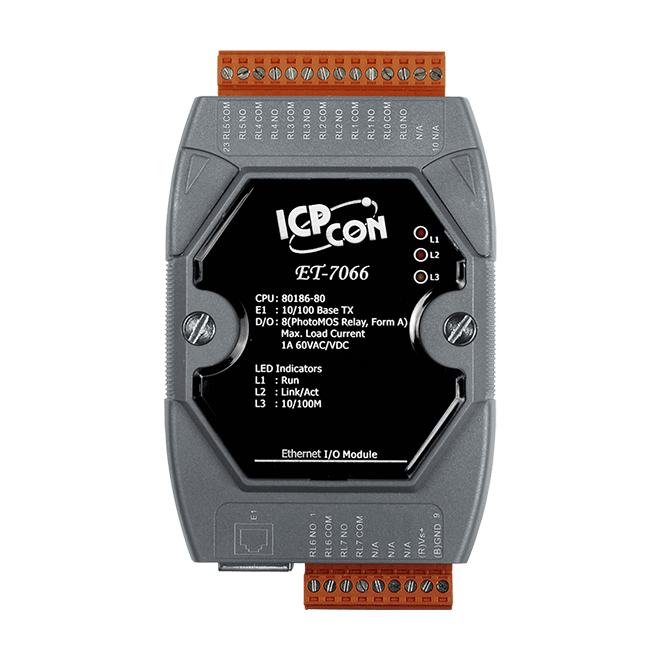

ET-7066

Ethernet I/O Module with 8-ch PhotoMOS Relay
ET-7066
ET-7066
ET-7066
ET-7066

Features

  • Built-in Web Server
  • Web HMI
  • Support for both Modbus TCP and Modbus UDP Protocols
  • Communication Security
  • Dual Watchdog
  • I/O Pair Connection
  • Built-in I/O
    • PhotoMOS Relay: 8 Channels
CE UKCA FCC RoHS WEEE

Introduction

The ET-7066 provides 8 form A PhotoMOS relays. It features optical isolation for 3000 Vrms of transient overvoltage protection and doesn't have channel-to-channel isolation. The power-on value and safe value of the PhotoMOS relay are programmable. It can safely be used in applications where hazardous voltages are present.

Applications

Building Automation, Factory Automation, Machine Automation, Remote Maintenance, Remote Diagnosis, and Testing Equipment.

Ordering Information

PRODUCT SERIES DESCRIPTION QNT. INQUIRY
PRODUCT SERIES ET-7066     CR DESCRIPTIONEthernet I/O Module with 8-ch PhotoMOS Relay (RoHS)
This combination include other products.

Similar Products

Software
Built-in Web Server Yes
CPU Module
Watchdog Timer Module, Communication (Programmable)
Isolation
2-way Isolation Ethernet: 1500 VDC
I/O: 3000 VDC
EMS Protection
EFT (IEC 61000-4-4) ±2 kV for Power Line
ESD (IEC 61000-4-2) ±4 kV Contact for Each Terminal
LED Indicators
Status Run, Ethernet
Relay Output
Channels 8
Type PhotoMOS Relay, Form A
Contact Rating 60V/1.0A (Operating Temperature -25 to +40°C)
60V/0.8A (Operating Temperature +40 to +60°C)
60V/0.7A (Operating Temperature +60 to +75°C)
Leakage Current 1 μA
Operate Time 2.0 ms (max.)
Release Time 0.3 ms (max.)
Power on Value Programmable
Safe Value Programmable
Ethernet
Ports 1 x RJ-45, 10/100 Base-TX
Access Control ID, Password and IP Filter
Protocol Modbus TCP, Modbus UDP
Power
Reverse Polarity Protection Yes
Consumption 2.6 W (max.)
Powered from Terminal Block +10 to +30 VDC
Mechanical
Dimensions (mm) 72 x 123 x 35 (W x L x H)
Installation DIN-Rail mounting
Environment
Operating Temperature -25 ~ +75 °C
Storage Temperature -30 ~ +80 °C
Humidity 10 to 90% RH, Non-condensing
