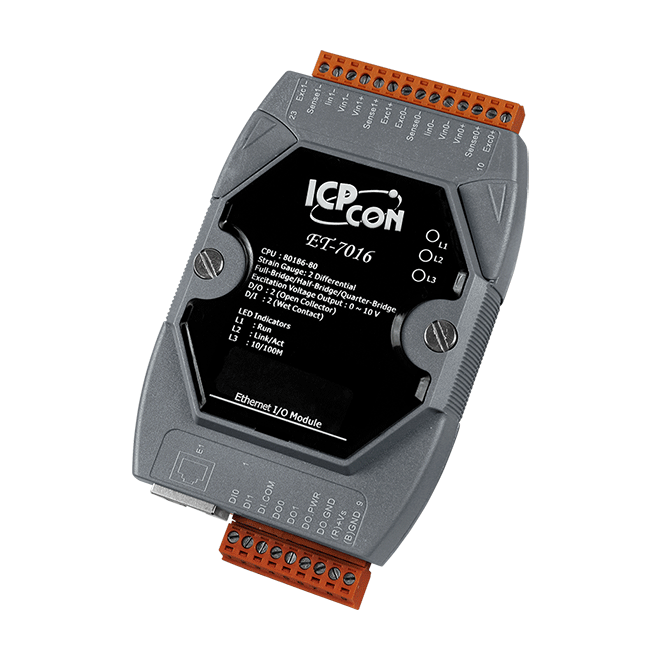

ET-7016
Ethernet I/O Module with 2-ch Strain Gauge Input, 2-ch DI, 2-ch DO
Features
- Built-in Web Server
- Web HMI
- Support for both Modbus TCP and Modbus UDP Protocols
- Communication Security
- Dual Watchdog
- I/O Pair Connection
- Built-in I/O
- Strain Gauge Input: 2 Channels
- DI/Counter: 2 Channels
- DO: 2 Channels
Introduction
The ET-7016 is a strain gauge module with 2 analog input channels, 1 excitation voltage output channel, 2 digital input channels and 2 digital output channels module. It provides various programmable analog input inputs (+/-1 mV, +/-50 mV, +/-100 mV, +/-500 mV, +/-1 V, and +/-2.5 V) and supports full-bridge, half-bridge, and quarter-bridge. The range for each analog input is allowed to be configured individually. The excitation voltage output can be in the range of 0 ~ 10 V with a 60 mA driving efficiency. Digital outputs can also be set as alarm outputs. The ET-7016 can also provide long-distance strain gauge measurement that compensates for the loss of voltage resulting from long-distance measurements.
Applications
Building Automation, Factory Automation, Machine Automation, Remote Maintenance, Remote Diagnosis, and Testing Equipment.
Ordering Information
| PRODUCT SERIES | DESCRIPTION | QNT. | INQUIRY |
|---|---|---|---|
This combination include other products.
Similar Products
| Software | |
|---|---|
| Built-in Web Server | Yes |
| CPU Module | |
|---|---|
| Watchdog Timer | Module, Communication (Programmable) |
| Isolation | |
|---|---|
| 2-way Isolation | Ethernet: 1500 VDC I/O: 2500 VDC |
| EMS Protection | |
|---|---|
| EFT (IEC 61000-4-4) | ±4 kV for Power Line |
| ESD (IEC 61000-4-2) | ±4 kV Contact for Each Terminal ±8 kV Air for Random Point |
| LED Indicators | |
|---|---|
| Status | Run, Ethernet |
| Digital Input/Counter | |
|---|---|
| Channels | 2 |
| Type | Wet Contact |
| Sink/Source (NPN/PNP) | Sink/Source |
| ON Voltage Level | +3.5 to +50 VDC |
| OFF Voltage Level | +1 VDC (max.) |
| Max. Counts | 4,294,967,295 (32-bit) |
| Frequency | 100 Hz |
| Min. Pulse Width | 5 ms |
| Overvoltage Protection | +70 VDC |
| Digital Output | |
|---|---|
| Channels | 2 |
| Type | Isolated Open Collector |
| Sink/Source (NPN/PNP) | Sink |
| Load Voltage | +5 to +50 VDC |
| Load Current | 700 mA/channel |
| Overvoltage Protection | +60 VDC |
| Overload Protection | 1.4 A |
| Short-circuit Protection | Yes |
| Power on Value | Programmable |
| Safe Value | Programmable |
| Strain Gauge, Load Cell Input | |
|---|---|
| Channels | 2 (Differential) |
| Type | Strain Gauge, Voltage, Current |
| Range | ±15 mV, ±50 mV, ±100 mV, ±500 mV, ±1 V, ±2.5 V ±20mA, 10 to 20 mA, 4 to 20 mA |
| Wiring | Full-Bridge, Half-Bridge, Quarter-Bridge |
| Accuracy | ±0.05% |
| Resolution | 16-bit |
| Sampling Rate | 10 Hz (total channels) |
| Impedance | Voltage Input: >400 kΩ, Current Input: 125 Ω |
| Individual Channel Configuration | Yes |
| Overvoltage Protection | +30 VDC |
| Excitation Voltage Output | |
|---|---|
| Channels | 1 |
| Range | 0 to 10 V |
| Accuracy | ±0.05% of FSR |
| Max. Load Current | 60 mA |
| Drift | ±50 ppm/°C |
| Power on Value | Programmable |
| Ethernet | |
|---|---|
| Ports | 1 x RJ-45, 10/100 Base-TX |
| Access Control | ID, Password and IP Filter |
| Protocol | Modbus TCP, Modbus UDP |
| Power | |
|---|---|
| Reverse Polarity Protection | Yes |
| Consumption | 2.9 W (max.) |
| Powered from Terminal Block | +10 to +30 VDC |
| Mechanical | |
|---|---|
| Dimensions (mm) | 72 x 123 x 35 (W x L x H) |
| Installation | DIN-Rail mounting |
| Environment | |
|---|---|
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 to 90% RH, Non-condensing |
