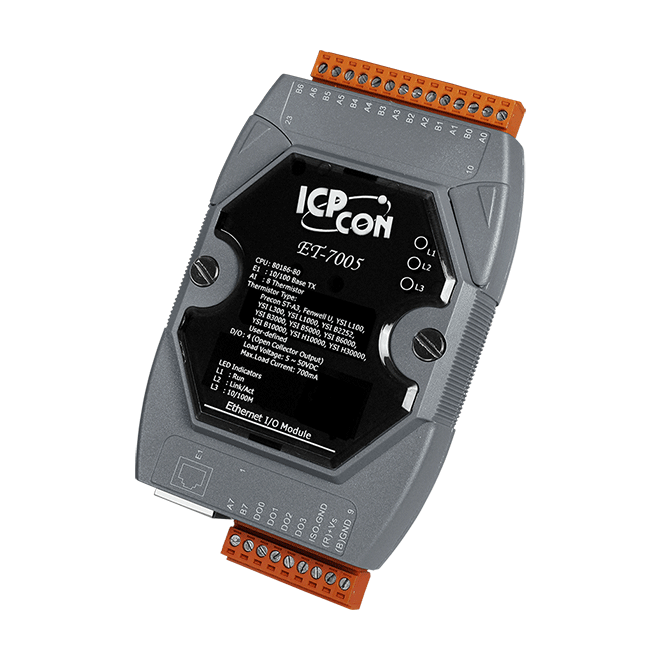

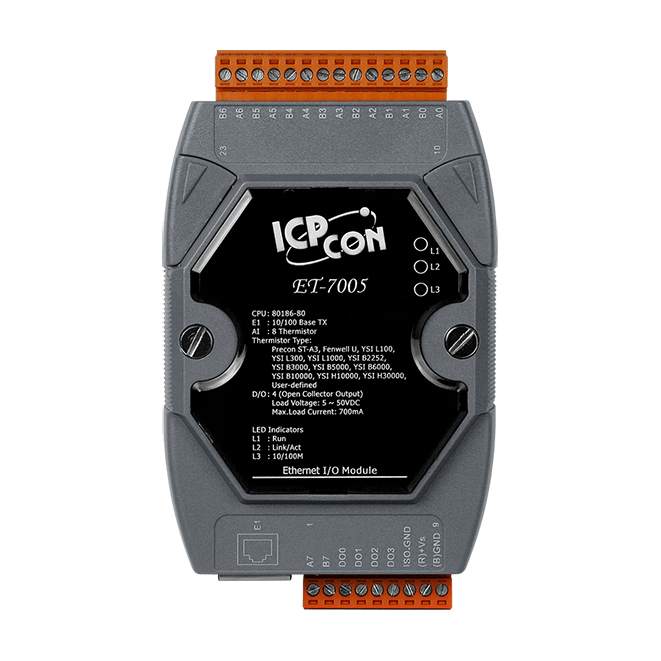

ET-7005

Ethernet I/O Module with 8-ch Thermistor Input, 4-ch DO
ET-7005
ET-7005
ET-7005
ET-7005

Features

  • Built-in Web Server
  • Web HMI
  • Support for both Modbus TCP and Modbus UDP Protocols
  • Communication Security
  • Dual Watchdog
  • I/O Pair Connection
  • Built-in I/O
    • Thermistor Input: 8 Channels
    • DO: 4 Channels
CE UKCA FCC RoHS WEEE

Introduction

ET-7005 is used for measuring temperature by the thermistor. It supports many kinds of thermistors and features individual channel configuration which means that eight of its input channels can individually be configured with a different kind of thermistor and supports user-defined types by specifying the Steinhart coefficients to add other thermistors, if necessary. Besides, ET-7005 also has 4-channel digital outputs for alarm output with Short-circuit protection and overload protection. Adding 2500 VDC intra-module isolation and 110 VDC/VAC overvoltage protection for the thermistor on ET-7005 makes itself run with higher reliability.

Applications

Building Automation, Factory Automation, Machine Automation, Remote Maintenance, Remote Diagnosis, and Testing Equipment.

Ordering Information

PRODUCT SERIES DESCRIPTION QNT. INQUIRY
PRODUCT SERIES ET-7005     CR DESCRIPTIONEthernet I/O Module with 8-ch Thermistor Input, 4-ch DO (RoHS)
This combination include other products.

Similar Products

Software
Built-in Web Server Yes
CPU Module
Watchdog Timer Module, Communication (Programmable)
Isolation
2-way Isolation Ethernet: 1500 VDC
I/O: 2500 VDC
EMS Protection
EFT (IEC 61000-4-4) ±4 kV for Power Line
ESD (IEC 61000-4-2) ±4 kV Contact for Each Terminal
±8 kV Air for Random Point
LED Indicators
Status Run, Ethernet
Analog Input
Channels 8 (Differential)
Type Thermistor
Sensor Type Precon ST-A3, Fenwell U, YSI L100, YSI L300, YSI L1000, YSI B2252, YSI B3000, YSI B5000, YSI B6000, YSI B10000, YSI H10000, YSI H30000, User-defined
Resolution 16-bit
Accuracy ±0.1% or better
Sampling Rate 10 Hz (total channels)
Overvoltage Protection +110 VDC/VAC
Individual Channel Configuration Yes
Open Wire Detection Yes
Digital Output
Channels 4
Type Isolated Open Collector
Sink/Source (NPN/PNP) Sink
Load Voltage +5 to +50 VDC
Load Current 700 mA/channel
Overvoltage Protection +60 VDC
Overload Protection 1.4 A
Short-circuit Protection Yes
Power on Value Programmable
Safe Value Programmable
Ethernet
Ports 1 x RJ-45, 10/100 Base-TX
Access Control ID, Password and IP Filter
Protocol Modbus TCP, Modbus UDP
Power
Reverse Polarity Protection Yes
Consumption 2.1 W (max.)
Powered from Terminal Block +10 to +30 VDC
Mechanical
Dimensions (mm) 72 x 123 x 35 (W x L x H)
Installation DIN-Rail mounting
Environment
Operating Temperature -25 ~ +75 °C
Storage Temperature -30 ~ +80 °C
Humidity 10 to 90% RH, Non-condensing
