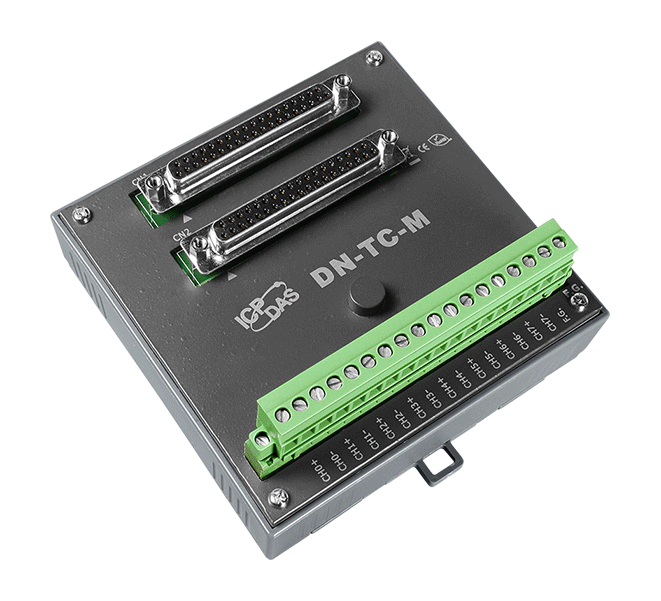

DN-TC-M

Termination board for thermocouple module
DN-TC-M
DN-TC-M
DN-TC-M
DN-TC-M

Features

CE FCC RoHS WEEE

Introduction

The DN-TC-M is a termination board for TC input modules. This termination board is also built-in CJC to measure temperature more accurate. The size of this termination board is also small and same as other mini termination boards for users’ installation.


PIN Assignments




Wiring




Applications

Ordering Information

PRODUCT SERIES DESCRIPTION QNT. INQUIRY
PRODUCT SERIES DN-TC-M     CR DESCRIPTIONTermination board for thermocouple module (RoHS)
This combination include other products.

Similar Products

Analog Input
Channels 8
Type Thermocouple
Mechanical
Dimensions (mm) 112 x 117 x 29
Installation DIN-Rail & wall mounting
Environment
Operating Temperature -25 ~ 75 °C
Humidity 5 ~ 95% RH, Non-condensing
