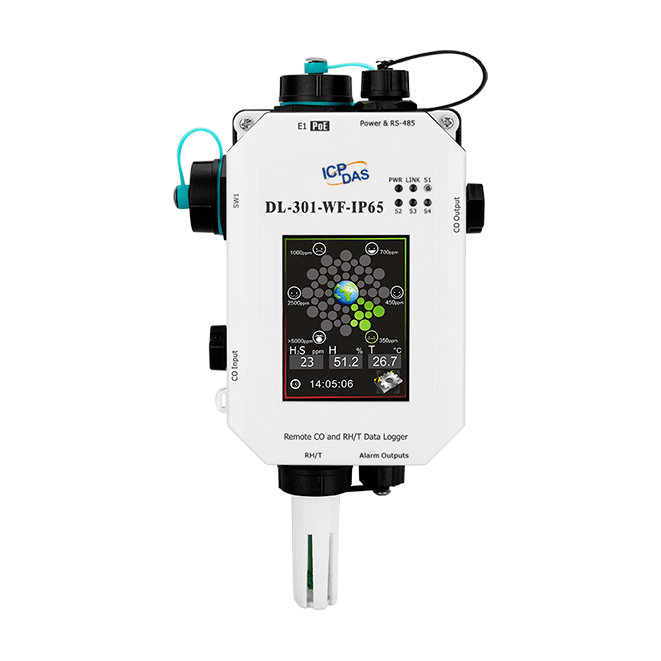

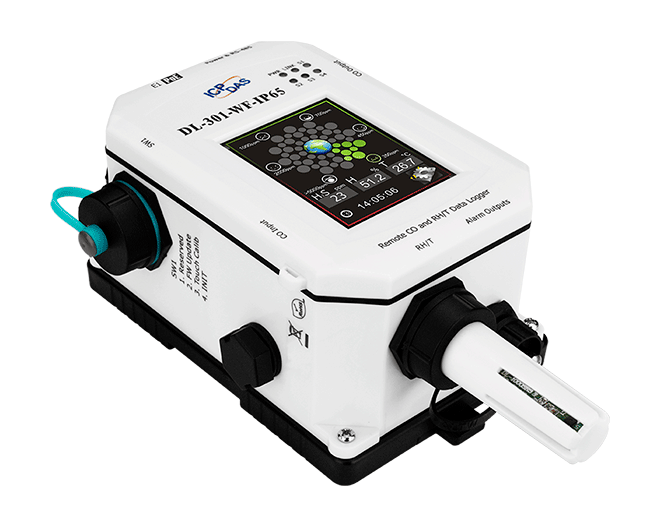

DL-301-WF-IP65

IP65 Remote CO/Temperature/Humidity/Dew Point Data Logger with Safety Alarm (RS-485, Ethernet, PoE, Wi-Fi) (Asia Only)
DL-301-WF-IP65
DL-301-WF-IP65
DL-301-WF-IP65
DL-301-WF-IP65
DL-301-WF-IP65
DL-301-WF-IP65
DL-301-WF-IP65
DL-301-WF-IP65
DL-301-WF-IP65
DL-301-WF-IP65
DL-301-WF-IP65
DL-301-WF-IP65

Features

  • Able to record CO, Temperature, Humidity, and Dew Point Measurements
  • 2.8" LCD Touch Screen
  • Up to 450,000 Records with Date and Time Stamps
  • Touch-screen and Web-based Configuration Interface
  • Simple and Powerful Software Utility, iOS App and Android App Included
  • Able to Display Multilingual Messages on the Screen
  • Supports the DCON, Modbus RTU and Modbus TCP Protocols
  • Supports the MQTT Protocol for Ethernet Interface
  • Includes RS-485/Ethernet/Wi-Fi Communication Interfaces
  • Includes Redundant Power Inputs: PoE (IEEE 802.3af, Class 1) and DC Input
  • Compatible with IEEE802.11b/g/n Standards
  • Support Infrastructure and Limit-AP Modes for Wireless Networks
  • Relay Output for Audible/Visual Alarm or Device Control
  • Web-based configuration interface and firmware update via Ethernet
  • IP 65 Protection Approval
RoHS WEEE

Introduction


The DL-300-WF-IP65 series is a gas detector monitoring module with Wi-Fi, Ethernet and RS-485 interfaces. It provides a WLAN connection which complies with the IEEE802.11b/g/n standards. With the popularity of 802.11 network infrastructure, the modules make an easy way to incorporate wireless connectivity into monitoring and control systems. The DL-300-WF-IP65 series of Data Logger devices can be used to record CO, CO2, HCHO, TVOC, NH3, H2S, Temperature, Humidity and Dew Point information, including date and time stamps, and are able to store up to 450,000 downloadable records. Real-time data can be accessed from the DL-300-WF-IP65 series Data Logger from anywhere and at any time using the free Windows software, the iOS App or the Android App, as long as they are connected to the same local network as the data Logger. Support is provided for popular industrial protocols such as DCON, Modbus RTU, and Modbus TCP. For Ethernet interface, It also support the emerging machine-to-machine (M2M)/IoT (Internet of Things) connectivity protocol - MQTT. The DL-300-WF-IP65 series Data Logger can be connected via widely used communication interfaces including RS-485, Ethernet, PoE and Wi-Fi, meaning that the device can be easily integrated into existing HMI or SCADA systems, and is easy to be maintained in a distributed control system. The IP65 version of DL-300-WF-IP65 series is designed for industrial applications in harsh environments that provides IP65 grade protection approval. The rugged RJ-45 ensures tight, robust connections, and guarantees reliable operation, even for applications that are subject to high vibration and shock.



Large 2.8" LCD Touch Screen, with clear Color Chart to indicate the CO/CO2 Level



Supports the MQTT Protocol for IoT Applications






Simple and powerful utility

The iAir Utility can be used to configure the modules, monitor real-time data, group DL-300 modules so that the status of distribution groups can be viewed and managed. The utility also allows the log data to be downloaded and exported to a .CSV file that can then be imported into any industrystandard software or spread sheet for analysis.





Multi-platform Remote Access Software

Real-time data from the DL-300 Data Logger can be accessed from anywhere and at any time using the iAir Utility, the iOS or Android App, or via a regular web browser, as long as they are connected to the same local network as the Data Logger.





Display Messages in Multiple Languages

The display-message-on-screen function supports multiple language character sets based on UTF-8 encoding. Either pre-configured messages or dynamic messages can be remotely displayed using Modbus commands, or a dynamic message can be sent via the web-based interface.







Real-time data from the DL-300-WF series can be accessed from anywhere and at any time using the WF-IIOT-Utility and iOS App.



Applications



Mushroom Farm

Mushroom growth yield requires long time to monitor the environment of CO2 concentration, temperature and humidity values, and its growth environment is high humidity condition. The general equipment cannot work in such environment, but the DL-308-WF-IP65 can be used to record CO2, temperature, humidity and dew point information with date and time stamps in the operating temperature from -20˚C to +50˚C, and are able to store up to 450,000 downloadable records . The WISE-5231-3GWA features timer and schedule functions. It allows user to schedule specific date or time for control logic execution, or perform specific tasks such as time delay. With calendar user interface provided, schedule setting can be more efficient and flexible. This does not require programming, only some simple settings will be able to achieve the farm production control and quality control, production resume ... and so on.

Pig Farm

Ammonia and Hydrogen sulfide are two of the most harmful gases in animal farming environment. They will directly affect animals’ growth and immunity. Pig farm requires long-term immediate monitoring the environment of NH3 concentration, temperature and humidity values. The general equipment cannot work in such environment, but the DL-308-WF-IP65 can be used to record NH3, temperature, humidity and dew point information with date and time stamps in the operating temperature from -20°C to +50°C, and are able to store up to 450,000 downloadable records. The WISE-5231-3GWA features timer and schedule functions. It allows user to schedule specific date or time for control logic execution, or perform specific tasks such as time delay. With calendar user interface provided, schedule setting can be more efficient and flexible. This does not require programming, only some simple settings will be able to achieve the farm production control and quality control, production resume ... and so on.

Ordering Information

PRODUCT SERIES DESCRIPTION QNT. INQUIRY
PRODUCT SERIES DL-301-WF-IP65     CR DESCRIPTIONIP65 Remote CO/Temperature/Humidity/Dew Point Data Logger with Safety Alarm (RS-485, Ethernet, PoE, Wi-Fi) (RoHS) (Asia Only)
This combination include other products.

Similar Products

Software
Built-in Web Server Yes
CPU Module
Real Time Clock Yes
Watchdog Timer Yes, Module (2.3 sec), Communication (Programmable)
Display
Backlight Life 20,000 hours
Brightness 160 cd/m2
Touch Panel Yes
LCD Information Displayed 2.8 TFT (Resolution 240 x 320 x 16), Defective Pixels <= 3
LED Indicators
Status PWR: Green for normal operation
Link: Green for the Ethernet-linked
S1 ~ S4: Red for an alarm condition
Temperature Measurement
Range -20 ~ +50°C
Resolution 0.1°C
Accuracy ±0.6°C
Humidity Measurement
Range 0 ~ 100% RH, Non-condensing
Resolution 0.1% RH, Non-condensing
Accuracy ±5% RH, Non-condensing
Dew Point
Range Calculated using temperature and relative humidity
Resolution 0.1°C
CO Measurement
Range 0 ~ 1000 ppm (Electrochemical)
Resolution 1 ppm
Accuracy ±5% of
measured value
Response Time 30 seconds
Warm-up Time 300 seconds
System
Security IP filter (whitelist) and Password (web)
Real Time Clock Yes
Data Logger Yes, up to 450,000 records
Wi-Fi
Transmission Distance (LoS) 50 meters (LOS)
Standard Supported IEEE 802.11 b/g/n
RX Sensitivity -95.7 dBm @ 1 DSSS, -74.0 dBm @ 54 OFDM
Output Power 18 dBm @ 1 DSSS, 14.5 dBm @ 54 OFDM
Mode Infrastructure & Limited AP
Protocol Modbus/TCP
Encryption WEP, WPA and WPA2
Antenna 1 dBi (PCB Antenna)
Relay Output
Type PhotoMos Relay × 4, 100 VDC @ 1 A
Ethernet
Ports 10/100 Base-TX, 8-Pin RJ-45 x1(Auto-negotiating, Auto-MDI/MDIX, LED indicators)
PoE Yes
Protocol Modbus/TCP, MQTT
COM Ports
Ports 1 x RS-485
Baud Rate 1200 ~ 115200 bps
Protocol DCON, Modbus/RTU
Power
Consumption PoE: 3.4 W (Max.)
Non-PoE: 3.1 W (Max.)
Powered from PoE IEEE 802.3af, Class 1 (48 V)
Powered from Terminal Block +12 ~+48 VDC
Mechanical
Dimensions (mm) 116 x 211 x 70 (W x L x H)
Installation DIN-Rail or Wall Mounting
Ingress Protection Rating IP65
Environment
Operating Temperature -20 ~ +50°C
Storage Temperature -30 ~ +75°C
Humidity 10 ~ 90% RH, Non-condensing
