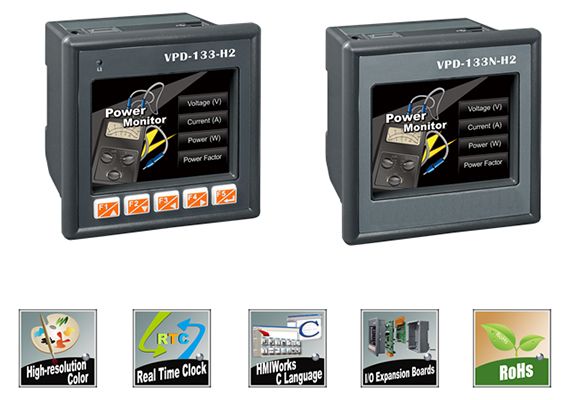

VPD-133-H2, VPD-133N-H2 – 3.5” Touch HMI Device with RS-232/485, USB, Ethernet (PoE), RTC and support XV-board (RoHS)
New Products
2022-07-20
Introduction:
The new VPD-133-H2 and VPD-133N-H2 are used to replace VPD-133-H and VPD-133N-H. Their hardware specifications are compatible. In software, the bin files are not compatible, but the source code is completely compatible, the user only needs to choose -H2 model name while compiling the project file via HMIworks.Please refer to the FAQ 044:How do I migrate project from VPD-13x-H to VPD-13x-H2?
The following is the features comparisons table for the VPD-133(N)-H and VPD-133(N)-H2 series models:
| Model Name | VPD-133-H VPD-133N-H |
VPD-133-H2 VPD-133N-H2 |
|---|---|---|
| Product Status | While Supply Last | Available |
| CPU | 32-bit RISC CPU | |
| Memory Expansion | 16 MB SDRAM/16 MB Flash | |
| RTC | Yes | |
| Buzzer | Yes | |
| Rotary Switch (0~9) | Yes | |
| LCD | 3.5 TFT (Resolution 240 x 320 x 16) | |
| Serial Port | COM1 : RS-232/RS-485, COM2 : RS-485 | |
| Firmware updates | USB 1.1 Client or Ethernet | |
| Ethernet | RJ-45 x 1, 10/100 Base-TX | |
| Powered from PoE | IEEE 802.3af, Class1 (48 V) | |
| Rubber Keypad | Yes, only supports VPD-133-H | Yes, only supports VPD-133-H2 |
For more information, please visit the link below:
https://www.icpdas.com/en/product/guide+Panel__Products+TouchPAD+TPD__Series#884
